Product Specifications
| Manufacturer Part Number | 534222 |
| Collet System | Double Angle |
| Collet Series | DA100 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1" |
| Projection (Decimal Inch) | 2" |
| Minimum Collet Capacity (Inch) | 3/64" |
| Maximum Collet Capacity (Inch) | 9/16" |
| Collet Nut Diameter (Decimal Inch) | 1.06" |
| Overall Length (Decimal Inch) | 7.5" |
| Seat Depth (Decimal Inch) | 1.66" |
| Shank Length (Decimal Inch) | 5.5" |

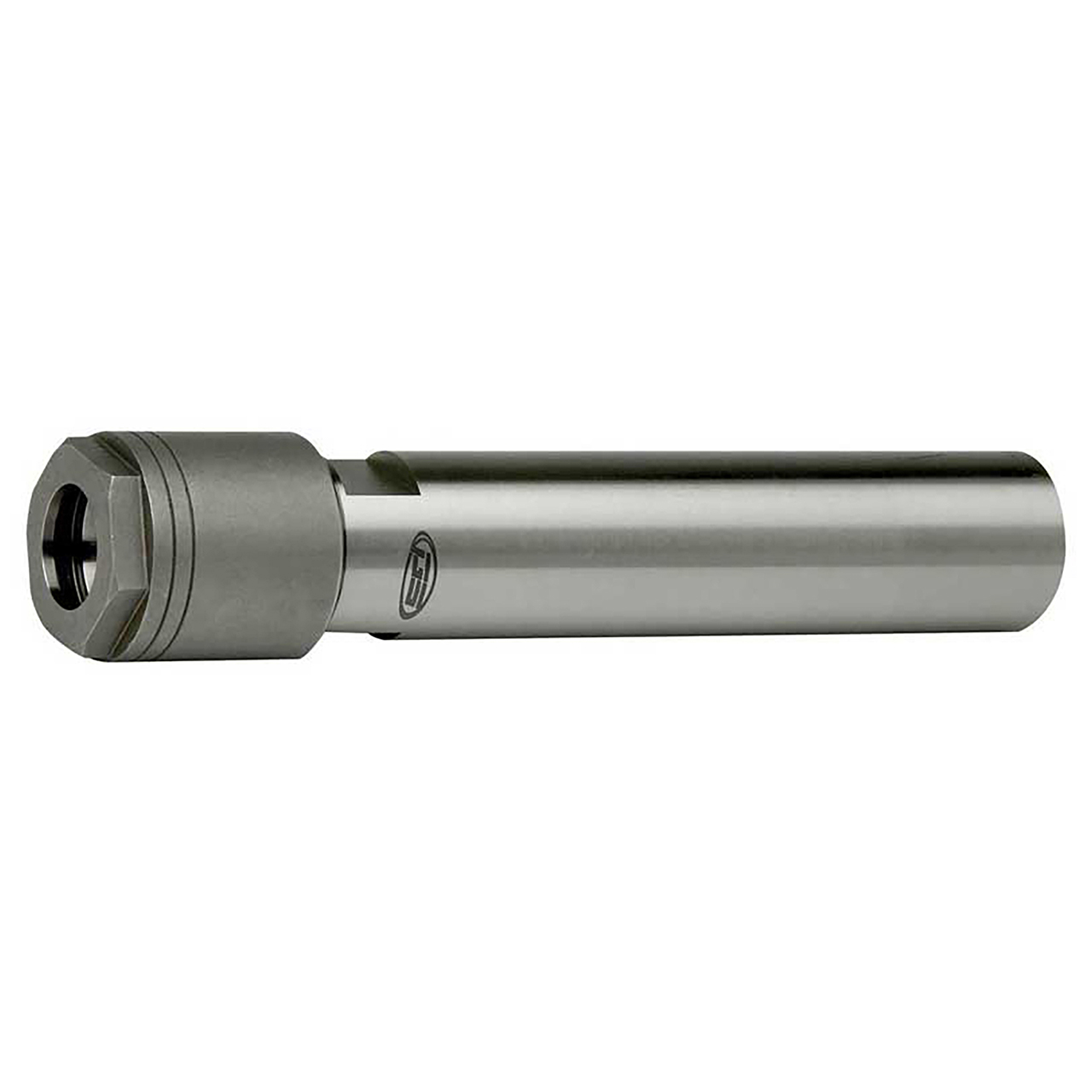

| Product Type | Collet Chuck |
