| Manufacturer Part Number | 534324 |
| Collet System | Single Angle |
| Collet Series | TG100 |
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Projection (Decimal Inch) | 3.25" |
| Minimum Collet Capacity (Inch) | 3/64" |
| Maximum Collet Capacity (Inch) | 1" |
| Collet Nut Diameter (Decimal Inch) | 2.5" |
| Seat Depth (Decimal Inch) | 2.73" |
| Tightening Torque (Nm) | 81.3 |

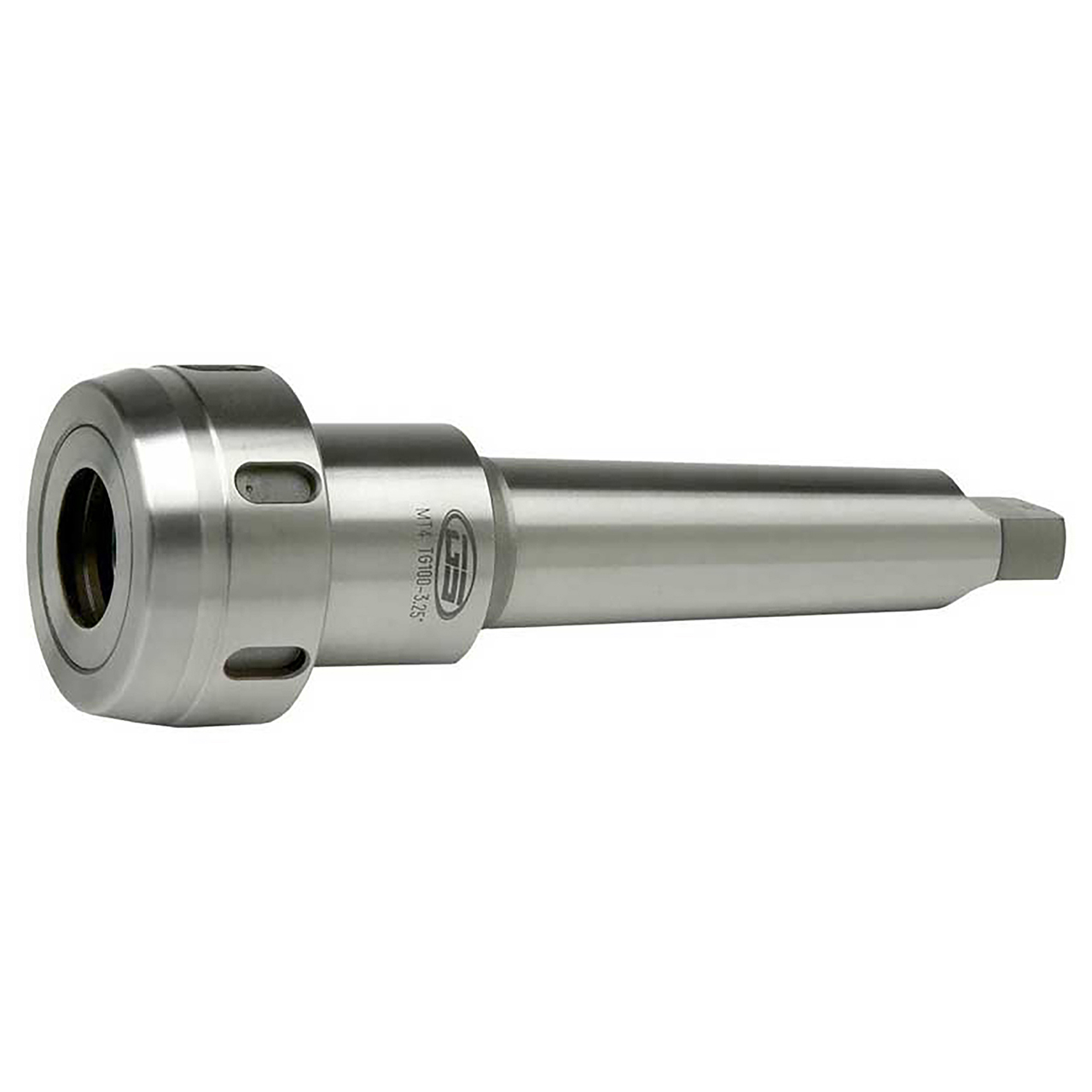

| Product Type | Collet Chuck |
