Features
- Unsurpassed Accuracy: Concentricity of ≤0.0001" (3µm) with tool shrunk in holder
- Coolant Ports: Each holder has 4 coolant ports in the nose to ensure coolant gets right to the tool
- Maximum Gripping Torque: Tool is gripped 360 degree along the entire length of bore producing very high gripping torque, preventing chatter
- Increased Production: Decrease down time - the total time elapsed to remove one cutting tool and insert another is less than 10 seconds
- Balanced: GS follows the strictest balance standards. This holders are pre-balanced G2.5 up to 30,000 RPM
- Extended Holder Life: With double tempered tool steel construction, reduced centrifugal forces, minimized bore contamination, and minimized chatter, a GS shrink fit toolholder should far outlast a standard end mill holder
- Chip load distributed evenly along cutting edge of tool which results in longer tool life
- Short projections are possible because no mechanical clamping devices are used. This results in greater rigidity and resistance to bending
- Since shrink fit toolholders have no moving parts they offer the greatest repeatability of any tool holding system on the market

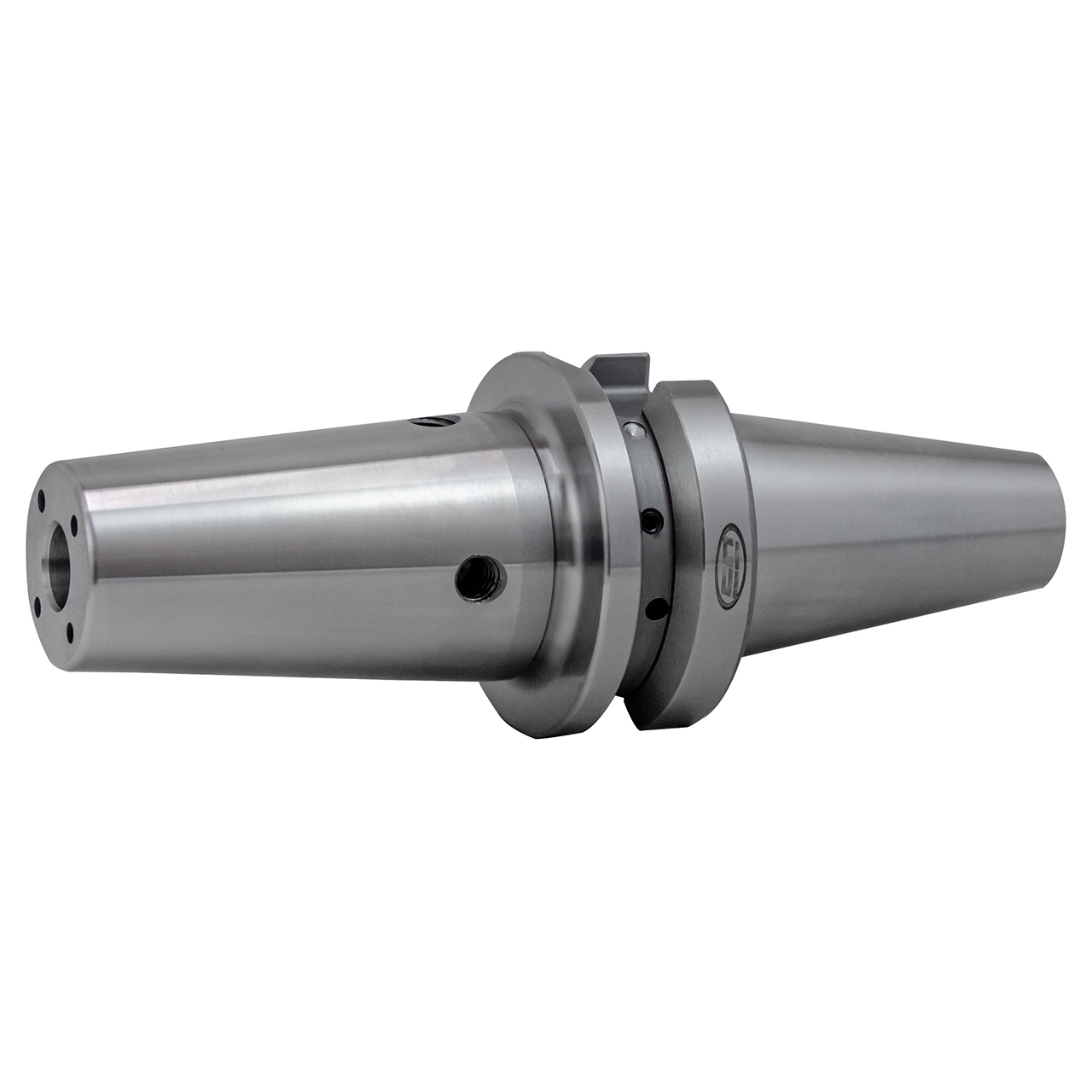

Product Specifications
| Manufacturer Part Number | 542468 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 1/4" |
| Projection (Decimal Inch) | 3.54" |
| Nose Diameter (Decimal Inch) | 0.83" |
| Through Coolant | Yes |
| Product Type | Shrink-Fit Tool Holder |
