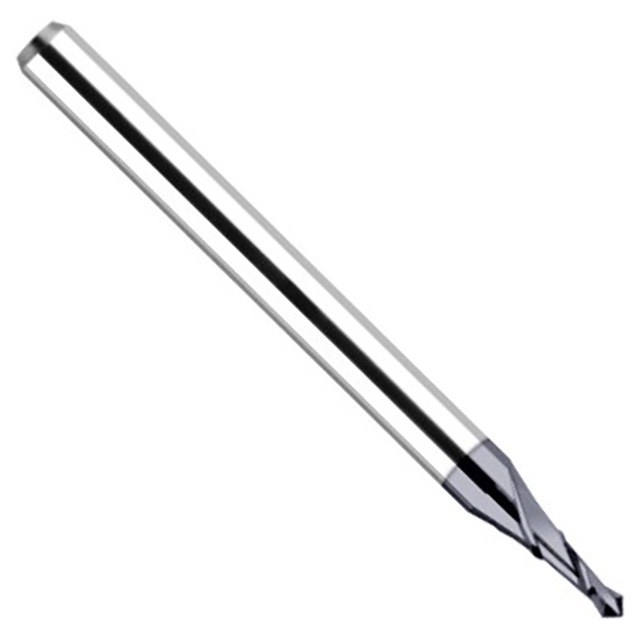

Harvey Tool 11447-C3 | 3/64" Diameter x Flute Length x 1/8" Straight Shank x 1-1/2" OAL 90 Degree Included Angle AlTiN Coated Solid Carbide Spotting Drill

$32.30
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (Inch):
3/64"
Size (Decimal Inch):
0.0470"
Drill Point Angle:
90 Degree
Flute Length (Decimal Inch):
0.1410"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Type:
Straight
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Finish/Coating:
AlTiN
Through Coolant:
No
Material:
Solid Carbide
Ships:
From Partner Facility
SKU:
10101420
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Features
  • 90 Degree available in long length!
  • Thinned Web to Reduce Walking
  • Self-Centering Point Geometry
  • 2 Flutes
  • Solid Carbide
  • CNC ground in the USA
Product Specifications
Drill Diameter (Decimal Inch) 0.0470"
Drill Diameter (Inch) 3/64"
Angle Per Side 45 Degrees
Included Angle 90 Degree
Flute Length (Decimal Inch) 0.1410"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (Inch) 1-1/2"
Finish/Coating AlTiN
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (3x)
Web Thickness (Decimal Inch) 0.0040"
Type I
Single or Double Single
