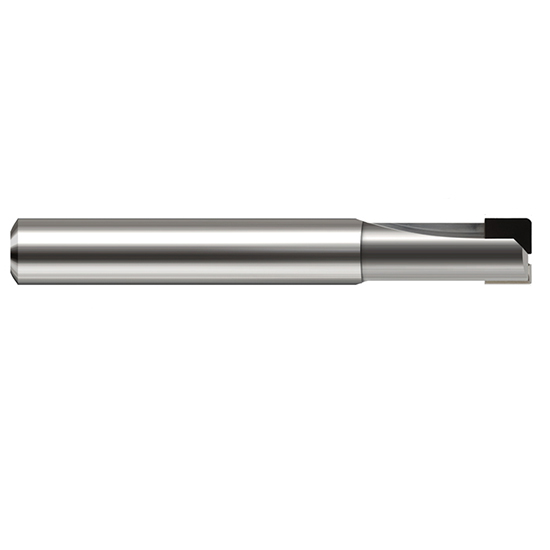

Harvey Tool 12224 | 3/8" Diameter x 3/8" Shank x 1/4" LOC x 2-1/2" OAL 0.0300" Radius 2FL PCD Coated Carbide Corner Radius & Corner Chamfer End Mill for Diamond Tooling

About This Item

Product Specifications

Mill Diameter (Inch)	3/8"
Mill Diameter (Decimal Inch)	0.3750"
Corner Radius (Decimal Inch)	0.0300"
Number of Flutes	2
Finish/Coating	PCD
Length Of Cut (Inch)	1/4"
Length Of Cut (Decimal Inch)	0.2500"
Overall Reach (Inch)	15/16"
Overall Reach (Decimal Inch)	0.9370"
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.5000"
Shank Diameter (Inch)	3/8"
Shank Diameter (Decimal Inch)	0.3750"
Single or Double End	Single
Center Cutting (Yes/No)	Yes
Neck Diameter (Decimal Inch)	0.3500"
Metric (Yes/No)	No
