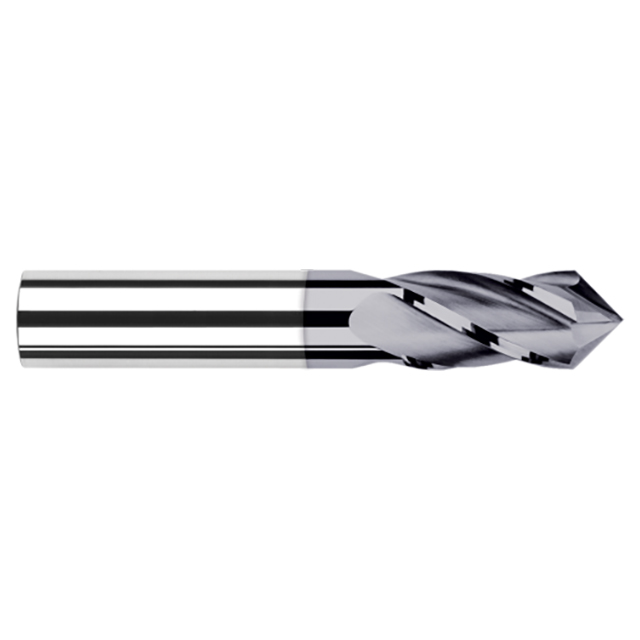

Product Specifications
| Cutter Diameter (Inch) | 1/64" |
| Cutter Diameter (Decimal Inch) | 0.0156" |
| Length of Cut (Inch) | 3/64" |
| Length of Cut (Decimal Inch) | 0.0470" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.5000" |
| Angle per Side | 45 Degree |
| Included Angle | 90 Degree |
| Number of Flutes | 4 |
| LOC Multiple | 3x |
| Web Thickness | 0.0015" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | AlTiN |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Material:
Carbide
Point Angle:
90 Degree
Mill Diameter (Inch):
1/64"
Mill Diameter (Decimal Inch):
0.0156"
Length of Cut (Inch):
3/64"
Length of Cut (Decimal Inch):
0.0470"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
4
Finish/Coating:
AlTiN
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Ships:
From Partner Facility
