Product Specifications
| Manufacturer Part Number | 16203-C6 |
| Cutter Diameter (Decimal Inch) | 0.250" |
| Cutter Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.125" |
| Neck Diameter (Inch) | 1/8" |
| Cutter Width (Decimal Inch) | 0.072" |
| Neck Length (Decimal Inch) | 0.312" |
| Neck Length (Inch) | 5/16" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Included Angle (Degree) | 60 Degree |
| Number of Flute | 4 |
| Type | I |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | C6 |

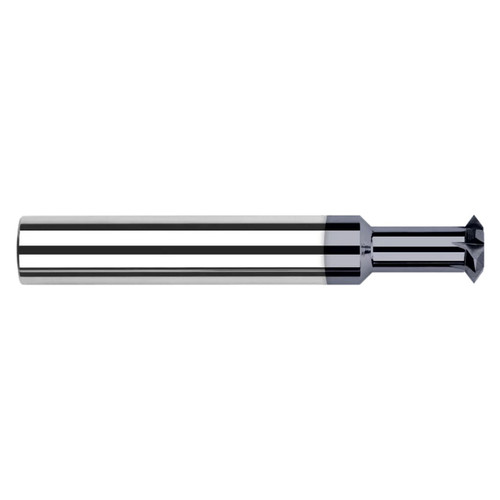

| Product Type | Double Angle Shank Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
60 Degree
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Diameter (mm):
6.35mm
Cutting Width (Inch):
5/64"
Cutting Width (Decimal Inch):
0.0720"
Cutting Width (mm):
1.83mm
Finish/Coating:
C6
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Interval quantity:
1
