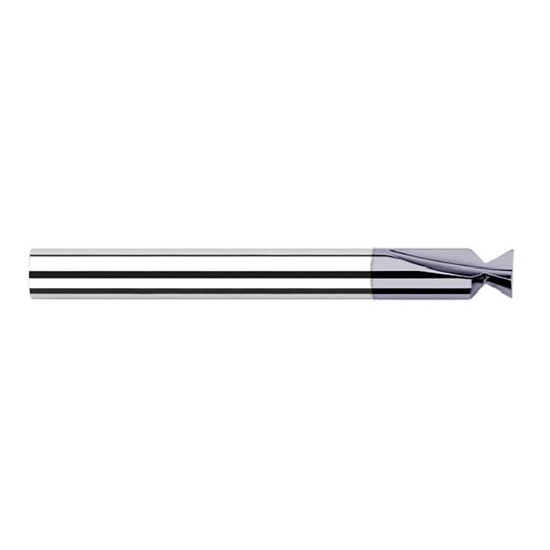

Product Specifications
| Mill Diameter (Decimal Inch) | 0.3125" |
| Mill Diameter (Inch) | 5/16" |
| Neck Diameter (Decimal Inch) | 0.1550" |
| Length Of Cut (Decimal Inch) | 0.0930" |
| Length Of Cut (Inch) | 3/32" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.0100" |
| Included Angle | 90 Degree |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (Inch) | 5/16" |
| Metric | No |
| Coating | AlTiN |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
90 Degree
Cutting Diameter (Inch):
5/16"
Cutting Diameter (Decimal Inch):
0.3125"
Cutting Width (Inch):
3/32"
Cutting Width (Decimal Inch):
0.0930"
Tip Radius:
0.0100"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Ships:
From Partner Facility
