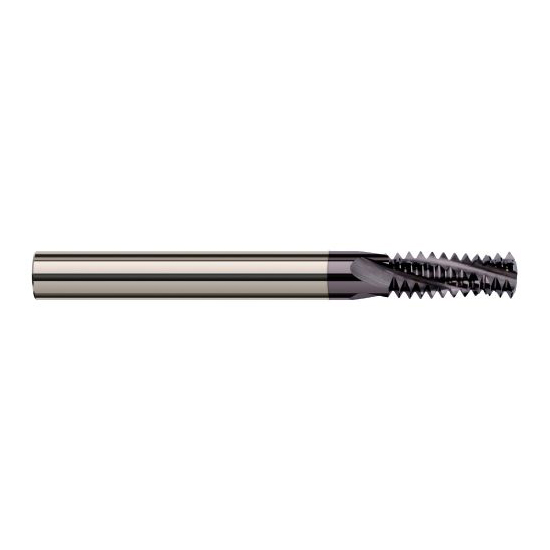

Harvey Tool 16909-C3 | M4.5-0.75 Thread 0.1200" Cutting Diameter 3FL AlTiN Coated Carbide Helical Flute Thread Mill

$132.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (mm):
M4.5-0.75
Cutter Diameter (Decimal Inch):
0.1200"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
3
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Finish/Coating:
AlTiN
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25119985
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Features
  • Designed for deep threaded applications
  • Larger cutter diameter for maximum strength
  • Due to increased cutting diameter, tools are designed to achieve 60% threads
  • Cuts internal 60 Degree, metric threads only
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size M4.5-0.75
Milling Diameter (Decimal Inch) 0.1200"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.2500"
Length of Cut (Inch) 1/4"
Overall Length (Decimal Inch) 2.0000"
Overall Length (Inch) 2"
Finish/Coating AlTiN
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
