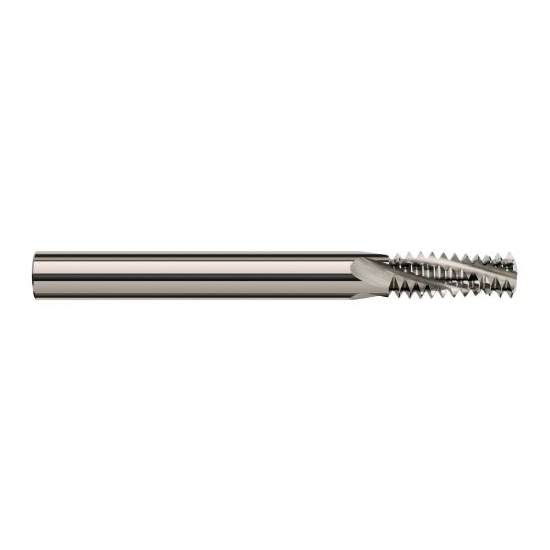

Harvey Tool 16917 | M6-1.00 Thread 0.1700" Cutting Diameter 3FL Uncoated Carbide Helical Flute Thread Mill

$153.90
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (mm):
M6-1.00
Cutter Diameter (Decimal Inch):
0.1700"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Finish/Coating:
Uncoated
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25119986
UPC:
Weight:
0.04 LBS
Shipping:
Free Shipping
Harvey Tool 16917 | M6-1.00 Thread 0.1700" Cutting Diameter 3FL Uncoated Carbide Helical Flute Thread Mill
Features
  • Cuts Internal and External 60 DegreeUN Threads
  • Helical Flutes
  • Fractional Shanks
  • Mills Right Hand and Left Hand Threads
  • Able to cut larger threads of the same pitch
  • Solid Carbide
  • CNC ground in the USA
Product Specifications
Size M6-1.00
Milling Diameter (Decimal Inch) 0.1700"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.5000"
Length of Cut (Inch) 1/2"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Finish/Coating Uncoated
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Thread Size (mm):
M6-1.00
Cutter Diameter (Decimal Inch):
0.1700"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Finish/Coating:
Uncoated
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
