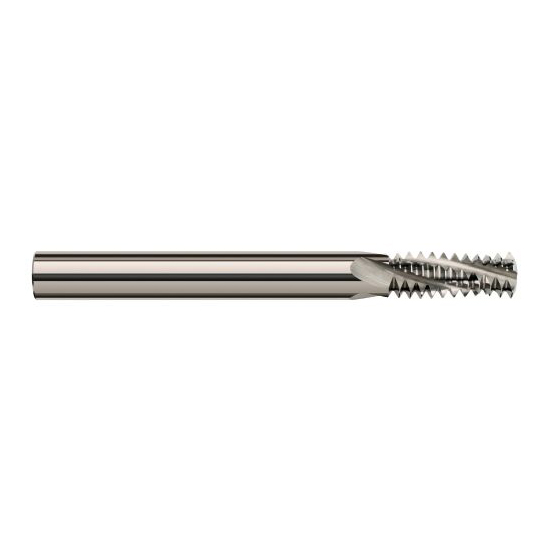

Harvey Tool 16923 | M8-1.25 Thread 0.2350" Cutting Diameter 3FL Uncoated Carbide Helical Flute Thread Mill

$177.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (mm):
M8-1.25
Cutter Diameter (Decimal Inch):
0.2350"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Number of Flutes:
3
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Finish/Coating:
Uncoated
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
interval quantity:
1
SKU:
25119987
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool 16923 | M8-1.25 Thread 0.2350" Cutting Diameter 3FL Uncoated Carbide Helical Flute Thread Mill
Features
  • Cuts Internal and External 60 DegreeUN Threads
  • Helical Flutes
  • Fractional Shanks
  • Mills Right Hand and Left Hand Threads
  • Able to cut larger threads of the same pitch
  • Solid Carbide
  • CNC ground in the USA
Product Specifications
Size M8-1.25
Milling Diameter (Decimal Inch) 0.2350"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (Inch) 1/4"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.6250"
Length of Cut (Inch) 5/8"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Finish/Coating Uncoated
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
