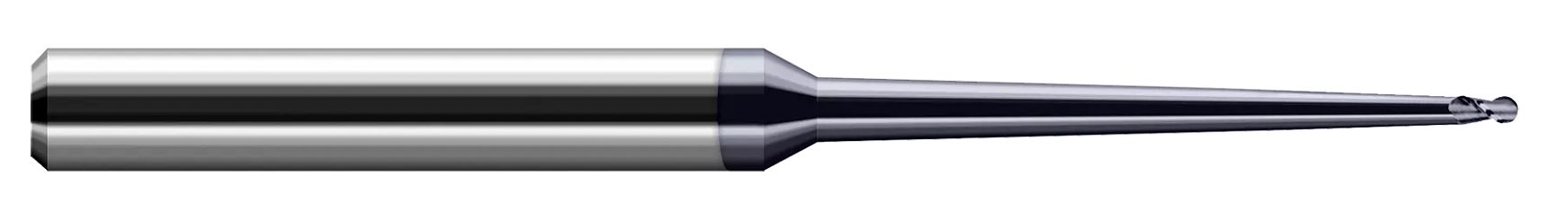

Offered in uncoated, AlTiN Nano coated, and Amorphous Diamond coated styles, Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling, and feature a 2 Degree tapered neck design to minimize deflection and maximize wall clearance.
| Cutter Diameter (Inch) | 0.0390" (1 mm) |
| Neck Diameter (Inch) | 0.0810" |
| Minor Diameter (Inch) | 0.0350" (.9 mm) |
| Length of Cut (Inch) | 0.0590" |
| Neck Length (Inch) | 0.0390" |
| Tapered Reach (Inch) | 0.7500" (3/4) |
| Overall Reach (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 2 |
| Neck Angle | 2 |
| LOC Multiple | 1.5x |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | Uncoated |
