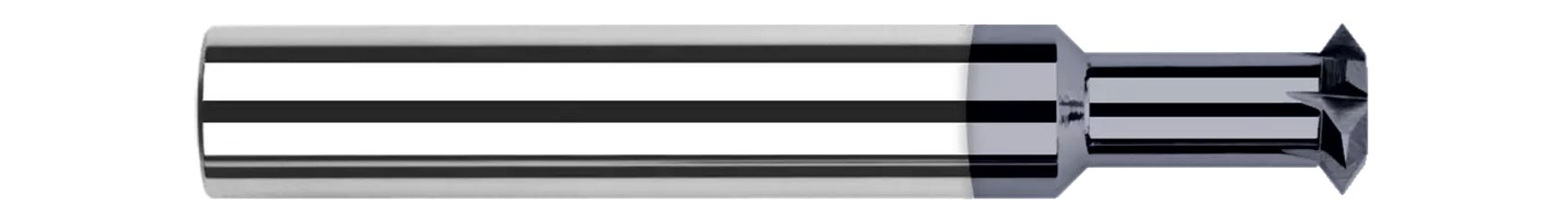

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60 Degree angle allows it to be used for thread milling, as well.
- Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
- Reduced neck for long reach machining
- Tip of included angle ground to a point
- 60 Degree angle can also be used for thread milling
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3930" |
| Neck Diameter (Inch) | 0.2600" |
| Cutter Width (Inch) | 0.1330" |
| Neck Length (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Number of Flutes | 6 |
| Angle per Side | 45 |
| Included Angle | 90 |
| Type | I |
| Shank Diameter (Inch) | 0.4375" (7/16) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.3930"
Neck Diameter (Decimal Inch):
0.2600"
Included Angle:
90 Degree
Number of Flutes:
6
Cutter Width (Decimal Inch):
0.1330"
Neck Length (Inch):
1-1/2"
Neck Length (Decimal Inch):
1.5000"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Finish/Coating:
Uncoated
