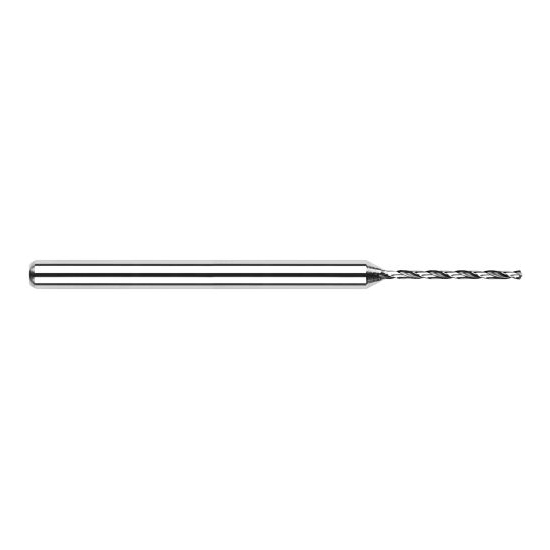

Harvey Tool 20491 | 0.1181" Diameter x 0.4130" Flute Length x 1/8" Straight Shank x 1-1/2" OAL 130 Degree Drill Point Angle Uncoated Solid Carbide Micro Drill Bit

$14.90
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (Decimal Inch):
0.1181"
Drill Point Angle:
130 Degree
Flute Length (Decimal Inch):
0.4130"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Type:
Straight
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Finish/Coating:
Uncoated
Through Coolant:
No
Material:
Solid Carbide
Ships:
From Partner Facility
SKU:
10101273
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Harvey Tool 20491 | 0.1181" Diameter x 0.4130" Flute Length x 1/8" Straight Shank x 1-1/2" OAL 130 Degree Drill Point Angle Uncoated Solid Carbide Micro Drill Bit
Features
  • Miniature drills down to .002"
  • For tools .020"" and smaller, there is an intermediate neck diameter as pictured above
  • 130 Degree drill point
  • Solid carbide
  • CNC ground in Germany
Product Specifications
Drill Diameter (Decimal Inch) 0.1181"
Point Angle 130 Degree
Flute Length (Decimal Inch) 0.4130"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (Inch) 1-1/2"
Finish/Coating Uncoated
Through Coolant No
Material Solid Carbide
Number of Flutes 2
Single or Double Single
