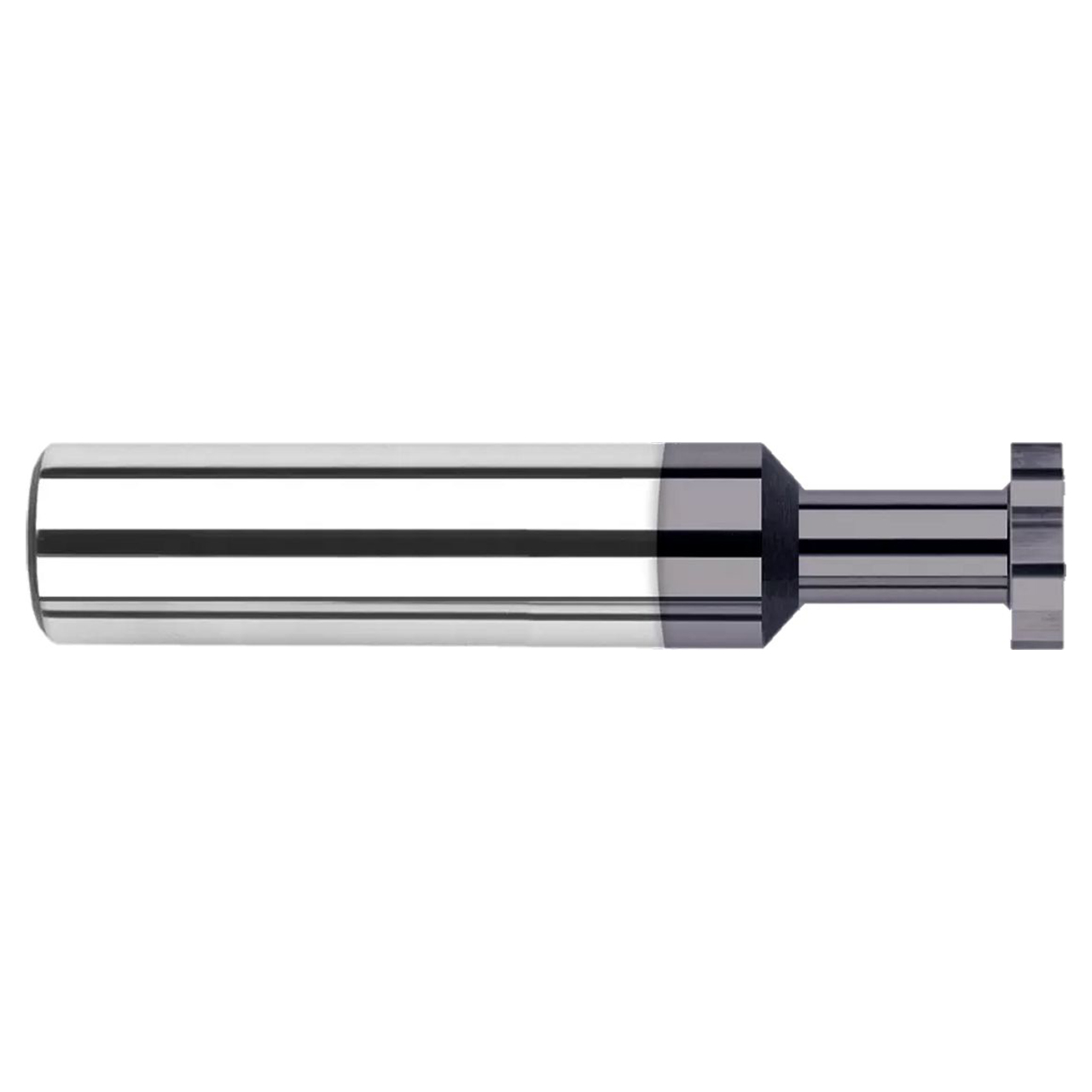

Harvey Tool 22257 | 0.1875" (3/16) Diameter x 0.1180" Width 0.1875" (3/16) Shank Uncoated Carbide Keyseat Cutter

$57.00
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1875"
Neck Diameter (Inch):
3/32"
Neck Diameter (Decimal Inch):
0.0930"
Number of Flutes:
6
Cutter Width (Decimal Inch):
0.1180"
Neck Length (Inch):
9/32"
Neck Length (Decimal Inch):
0.2810"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
25211143
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.

  • Both sides of cutter are dished for clearance
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number22257
Cutter Diameter (Inch)0.1875" (3/16)
Neck Diameter (Inch)0.0930" (3/32)
Cutter Width (Inch)0.1180"
Neck Length (Inch)0.2810" (9/32)
Overall Length (Inch)2.0000" (2)
Radial Depth of Cut (Inch)0.0370"
Flutes6
Reach Multiple1.5x
TypeI
Shank Diameter (Inch)0.1875" (3/16)
CoatingUncoated
