Product Specifications
| Manufacturer Part Number | 22380-C3 |
| Cutter Diameter (Decimal Inch) | 0.250" |
| Cutter Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.125" |
| Neck Diameter (Inch) | 1/8" |
| Cutter Width (Decimal Inch) | 0.080" |
| Neck Length (Decimal Inch) | 0.375" |
| Neck Length (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Radial Depth of Cut (Decimal Inch) | 0.053" |
| Number of Flute | 6 |
| Reach Multiple | (1x) |
| Type | I |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | C3 |

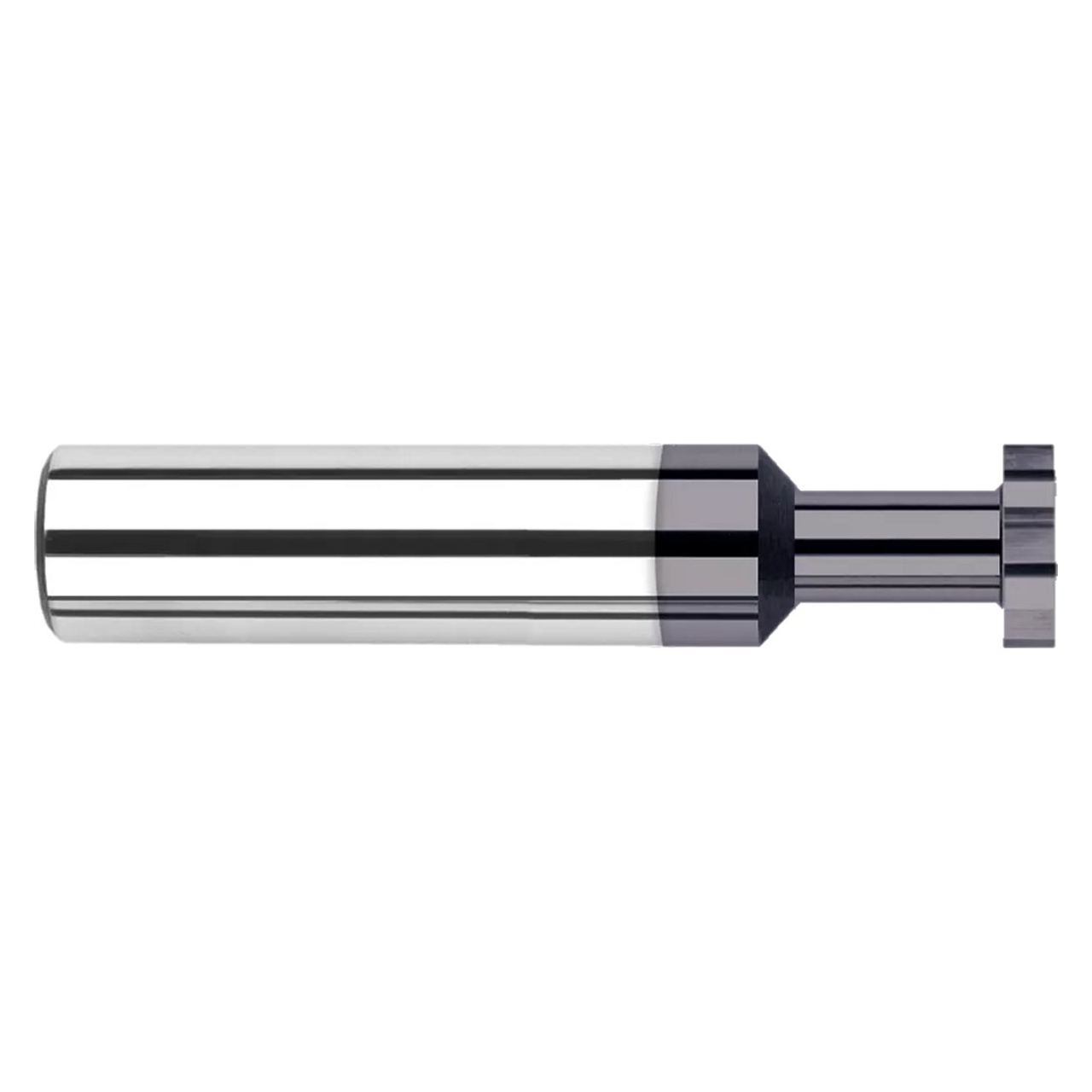

| Product Type | Keyseat Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Diameter (mm):
6.35mm
Cutting Width (Inch):
5/64"
Cutting Width (Decimal Inch):
0.0800"
Cutting Width (mm):
2.03mm
Neck Length (Inch):
3/8"
Neck Length (Decimal Inch):
0.3750"
Neck Length (mm):
9.53mm
Finish/Coating:
C3
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Interval quantity:
1
