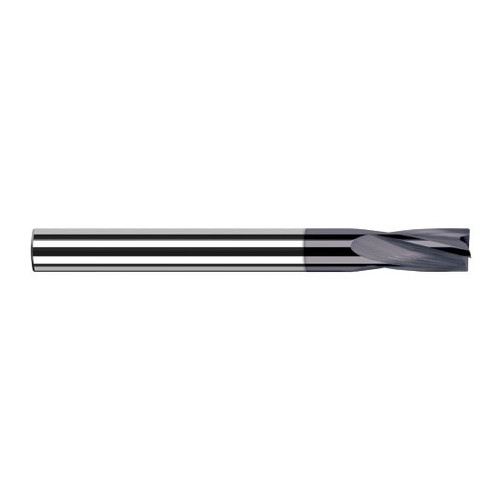

Harvey Tool 23411-C3 | 11/64" Diameter x 5/8" LOC x 5/8" Shank x 2" OAL 4FL AlTiN Coated Carbide Flat Bottom Counterbores

Harvey Tool 23411-C3 | 11/64" Diameter x 5/8" LOC x 5/8" Shank x 2" OAL 4FL AlTiN Coated Carbide Flat Bottom Counterbores

SKU: 10100994 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$52.20
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features
  • For spot facing or counterboring on irregular surfaces
  • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
  • Ideal for castings, rounded parts, concaved, or drafted surfaces
  • Can be used for flat bottom reaming or straightening misaligned holes
  • Center cutting
  • Ground with full cylindrical margin (not side cutting)
  • 1 Degree helix
  • 4 flutes
  • Solid carbide
  • AlTiN coating for increased performance in ferrous materials
  • AlTiN Nano coating for superior performance in ferrous and difficult to machine materials
  • CNC ground in the USA
Product Specifications
Mill Diameter (Inch) 11/64"
Mill Diameter (Decimal Inch) 0.1719"
Flute Length (Inch) 5/8"
Flute Length (Decimal Inch) 0.6250"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Overall Length (Decimal Inch) 2.0000"
Overall Length (Inch) 2"
Number of Flutes 4
Finish/Coating AlTiN
Material Solid Carbide
Single or Double Single
