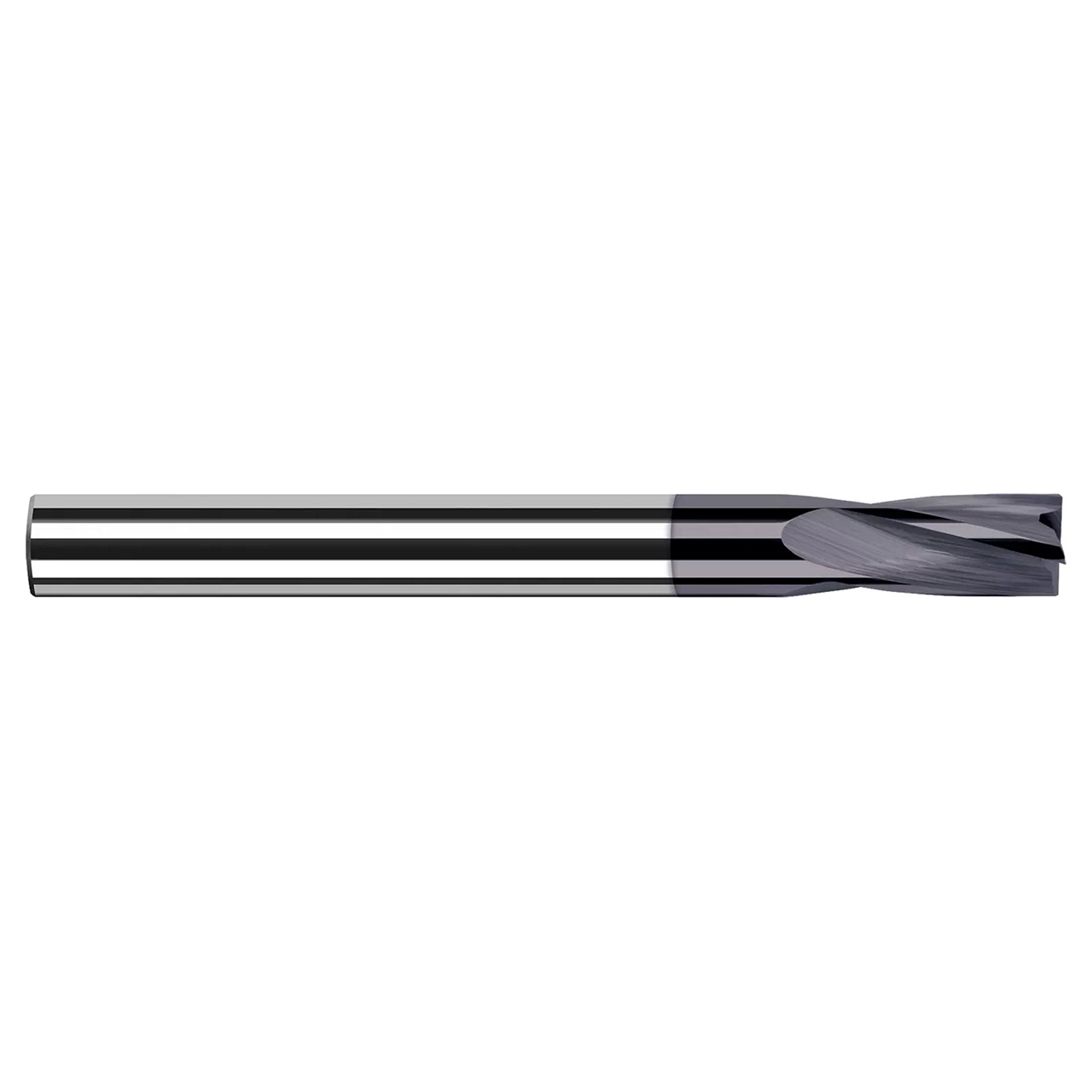

Harvey Tool 23432-C8 | 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 3.0000" (3) OAL 4 Flutes TiB2 Coated Carbide Flat Bottom Counterbore

$128.30
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Number of Flutes:
4
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
C8
SKU:
25232472
UPC:
Weight:
0.26 LBS
Shipping:
Calculated at Checkout

This Harvey Tool product line of Counterbores - Flat Bottom - Long Reach features tooling that can be used for flat bottom reaming or straightening misaligned holes.

  • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
  • Can be used for flat bottom reaming or straightening misaligned holes
  • Ground with full cylidrical margin (not side cutting)
  • Undersized neck to avoid heeling
  • CNC ground in the USA
  • Center cutting
  • Solid carbide
  • 15° Helix
  • 4 Flutes

Product Specifications
Tool Number23432-C8
Cutter Diameter (Inch)0.5000" (1/2)
Flute Length (Inch)1.0000" (1)
Overall Length (Inch)3.0000" (3)
Flutes4
Shank Diameter (Inch)0.5000" (1/2)
CoatingC8

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Number of Flutes:
4
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
C8
