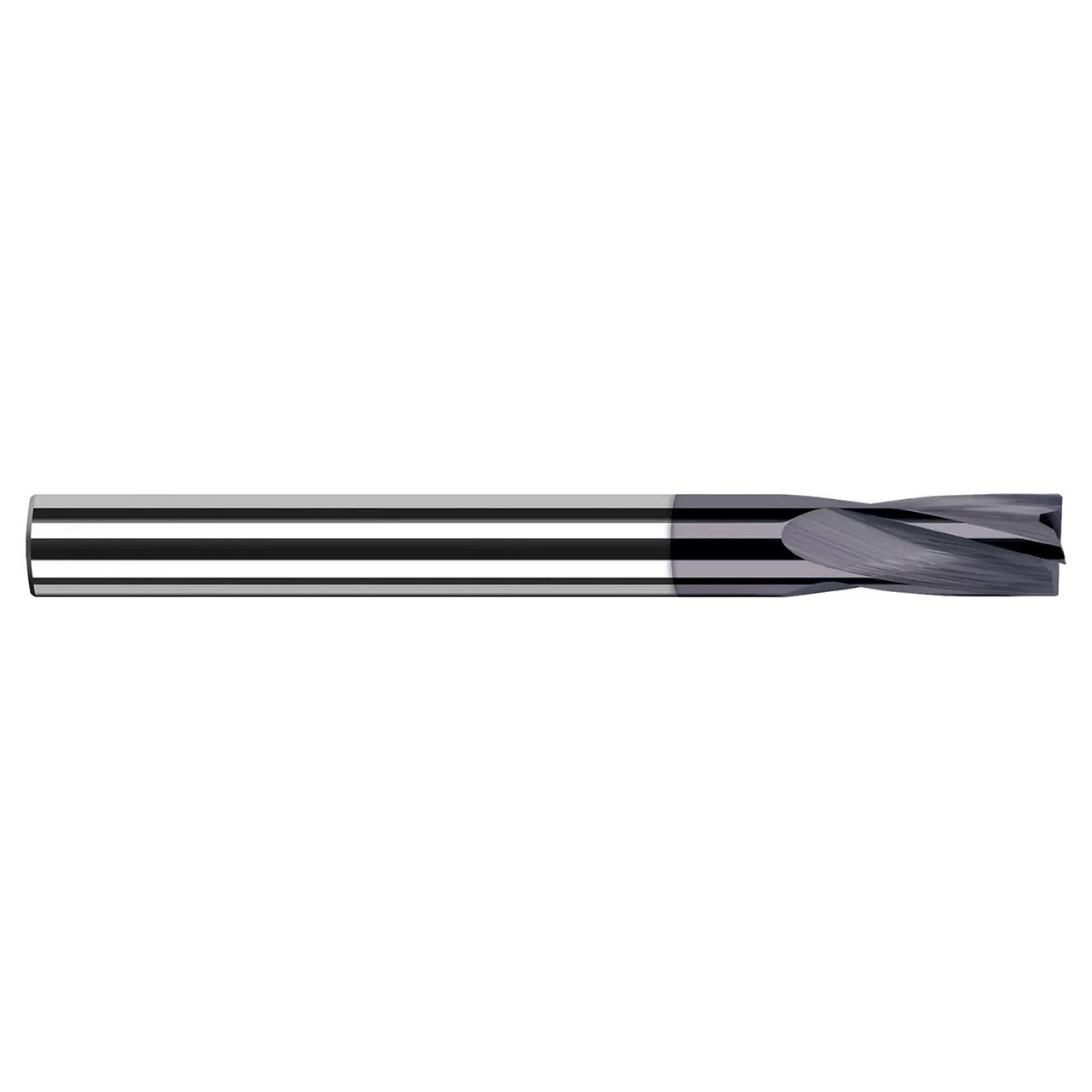

Harvey Tool 2345M-C8 | 0.1968" Diameter x 0.2500" (1/4) Shank x 2.5000" (2-1/2) OAL 4 Flutes TiB2 Coated Carbide Flat Bottom Counterbore

$57.00
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1968"
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Number of Flutes:
4
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C8
interval quantity:
1
SKU:
25232474
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

This Harvey Tool product line of Counterbores - Flat Bottom - Long Reach features tooling that can be used for flat bottom reaming or straightening misaligned holes.

  • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
  • Can be used for flat bottom reaming or straightening misaligned holes
  • Ground with full cylidrical margin (not side cutting)
  • Undersized neck to avoid heeling
  • CNC ground in the USA
  • Center cutting
  • Solid carbide
  • 15° Helix
  • 4 Flutes

Product Specifications
Tool Number2345M-C8
Cutter Diameter (Inch)0.1968"
Flute Length (Inch)0.7500" (3/4)
Overall Length (Inch)2.5000" (2-1/2)
Flutes4
Shank Diameter (Inch)0.2500" (1/4)
CoatingC8

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
