Product Specifications
| Mill Diameter (Decimal Inch) | 0.1350" |
| Neck Diameter (Decimal Inch) | 0.0880" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Corner Radius (Decimal Inch) | 0.0150" |
| Corner Radius (Inch) | 1/64" |
| Neck Radius (Decimal Inch) | 0.0100" |
| Included Angle | 48 Degree |
| Number of Flutes | 2 |
| O Ring Cross-Section (Decimal Inch) | 0.1030" |
| Radius Center (Decimal Inch) | 0.0730" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Metric | No |
| Coating | AlTiN |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

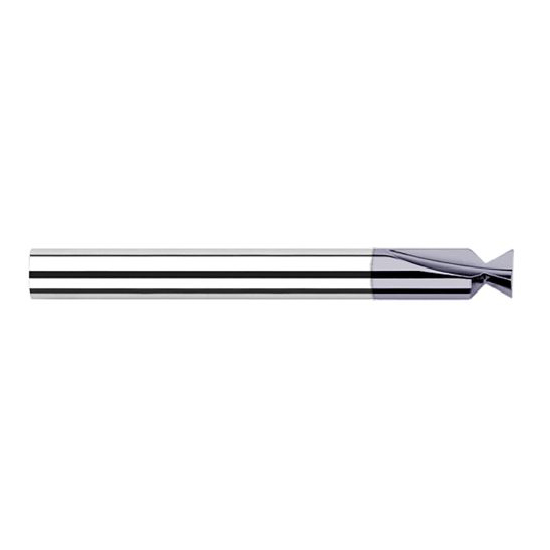

Brand:
Harvey Tool
Included Angle:
48 Degree
Cutting Diameter (Decimal Inch):
0.1350"
Tip Radius:
0.0150"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Ships:
From Partner Facility
interval quantity:
1
