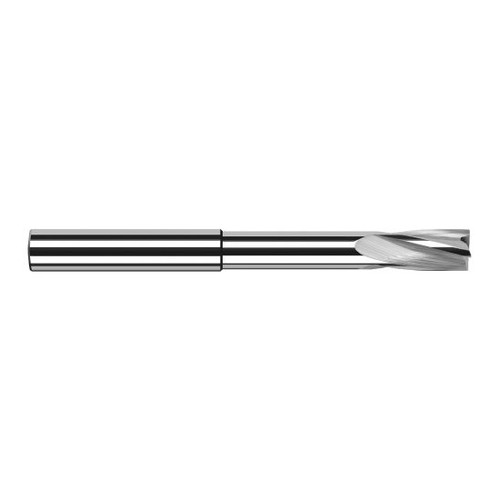

Harvey Tool 25519 | 19/64" Diameter x 7/8" LOC x 7/8" Shank x 4" OAL 4FL Uncoated Coated Carbide Flat Bottom Counterbores

$81.30
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutting Diameter (Inch):
19/64"
Cutting Diameter (Decimal Inch):
0.2969"
Flute Length (Inch):
7/8"
Overall Reach (Inch):
4"
Shank Diameter (Inch):
5/16"
Overall Length (Inch):
4"
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
Carbide
Ships:
From Partner Facility
IsDiscontinued:
SKU:
10101083
UPC:
Weight:
0.16 LBS
Shipping:
Free Shipping
Features
  • Undersized neck to avoid heeling
  • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
  • Ideal for castings, rounded parts, concaved or drafted surfaces
  • Can be used for flat bottom reaming or straightening misaligned holes
  • Center cutting
  • Ground with full cylidrical margin (not side cutting)
  • 15 Degree Helix
  • 4 Flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Mill Diameter (Inch) 19/64"
Mill Diameter (Decimal Inch) 0.2969"
Flute Length (Inch) 7/8"
Flute Length (Decimal Inch) 0.8750"
Overall Reach (Inch) 2-3/8"
Overall Reach (Decimal Inch) 2.3750"
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Overall Length (Decimal Inch) 4.0000"
Overall Length (Inch) 4"
Number of Flutes 4
Finish/Coating Uncoated
Material Solid Carbide
Single or Double Single
Neck Diameter (Decimal Inch) 0.2520"
