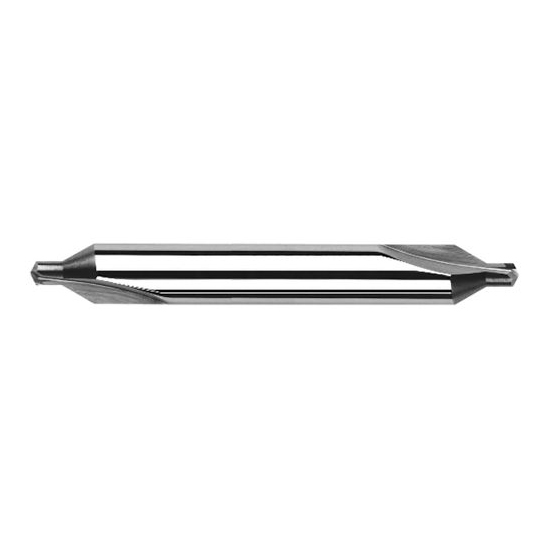

Harvey Tool 25650 | #3 82 Degree Incuded Angle x 1/4" Body Diameter x 2" OAL Double End Uncoated Carbide Combination Drill & Countersink

$32.20
Ships:
From Partner Facility
Brand:
Harvey Tool
Material:
Solid Carbide
Included Angle:
82 Degree
Trade Size:
3
Body Diameter (Inch):
1/4"
Body Diameter (Decimal Inch):
0.2500"
End Type:
Double
Number of Flutes:
2
Finish/Coating:
Uncoated
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
10100974
UPC:
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
Harvey Tool 25650 | #3 82 Degree Incuded Angle x 1/4" Body Diameter x 2" OAL Double End Uncoated Carbide Combination Drill & Countersink
Features
  • 60 Degree, 82 Degree, and 90 Degree included angles - Plain Type
  • 2 Flutes
  • 118 Degree included tip angle
  • Double-ended
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Material Solid Carbide
Included Angle 82 Degree
Angle Per Side 41 Degree
Point Angle 118 Degree
Size 3
Drill Diameter (Inch) 7/64"
Drill Diameter (Decimal Inch) 0.1094"
Single or Double Double
Number of Flutes 2
Coating Uncoated
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Length of Cut (Decimal Inch) 0.2230"
Drill Length (Inch) 7/64"
Drill Length (Decimal Inch) 0.1090"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
