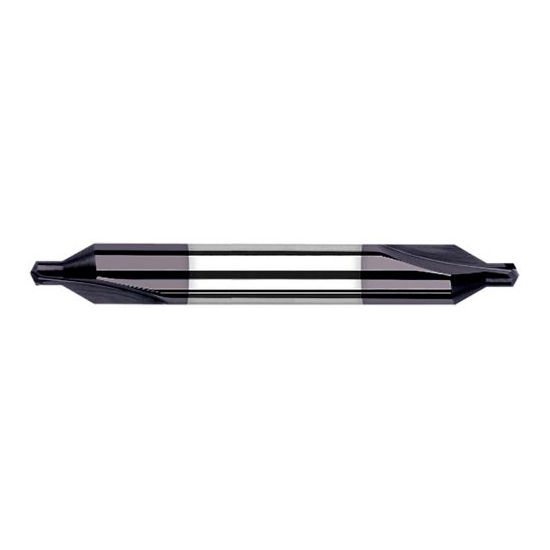

Harvey Tool 25670-C3 | #5 82 Degree Incuded Angle x 7/16" Body Diameter x 2-3/4" OAL Double End AlTiN Coated Carbide Combination Drill & Countersink

$81.80
Ships:
From Partner Facility
Brand:
Harvey Tool
Material:
Solid Carbide
Included Angle:
82 Degree
Trade Size:
5
Body Diameter (Inch):
7/16"
Body Diameter (Decimal Inch):
0.4375"
End Type:
Double
Number of Flutes:
2
Finish/Coating:
AlTiN
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
10100961
UPC:
Weight:
0.15 LBS
Shipping:
Free Shipping
Harvey Tool 25670-C3 | #5 82 Degree Incuded Angle x 7/16" Body Diameter x 2-3/4" OAL Double End AlTiN Coated Carbide Combination Drill & Countersink
Features
  • 60 Degree, 82 Degree, and 90 Degree included angles - Plain Type
  • 2 Flutes
  • 118 Degree included tip angle
  • Double-ended
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Material Solid Carbide
Included Angle 82 Degree
Angle Per Side 41 Degree
Point Angle 118 Degree
Size 5
Drill Diameter (Inch) 3/16"
Drill Diameter (Decimal Inch) 0.1875"
Single or Double Double
Number of Flutes 2
Coating AlTiN
Overall Length (Inch) 2-3/4"
Overall Length (Decimal Inch) 2.7500"
Length of Cut (Decimal Inch) 0.3870"
Drill Length (Inch) 3/16"
Drill Length (Decimal Inch) 0.1870"
Shank Diameter (Inch) 7/16"
Shank Diameter (Decimal Inch) 0.4375"
