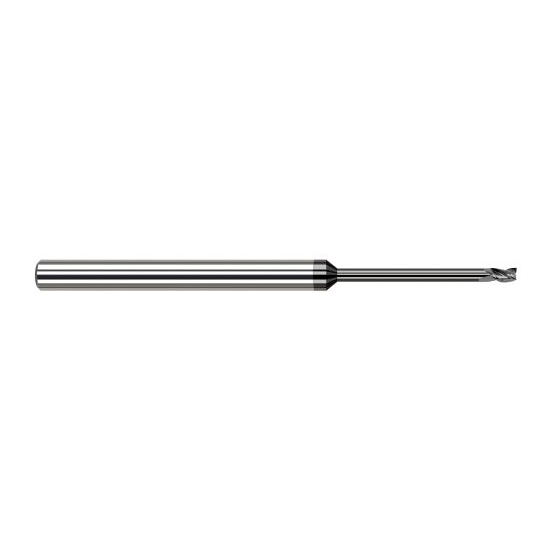

Product Specifications
| Mill Diameter (Inch) | 3/16" |
| Mill Diameter (Decimal Inch) | 0.1875" |
| Number of Flutes | 3 |
| Finish/Coating | Amorphous Diamond |
| Length Of Cut (Inch) | 9/32" |
| Length Of Cut (Decimal Inch) | 0.2810" |
| Overall Reach (Inch) | 2-1/4" |
| Overall Reach (Decimal Inch) | 2.2500" |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Center Cutting (Yes/No) | Yes |
| Neck Diameter (Decimal Inch) | 0.1830" |
| LOC Multiple | 1.5x |
| Reach Multiple | 12x |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
Amorphous Diamond
Length of Cut (Inch):
9/32"
Length of Cut (Decimal Inch):
0.2810"
Shank Type:
Reduced
Overall Reach (Inch):
2-1/4"
Overall Reach (Decimal Inch):
2.2500"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Single or Double End:
Single
Center Cutting:
Yes
Cutting Direction:
Right
Ships:
From Partner Facility
IsDiscontinued:
