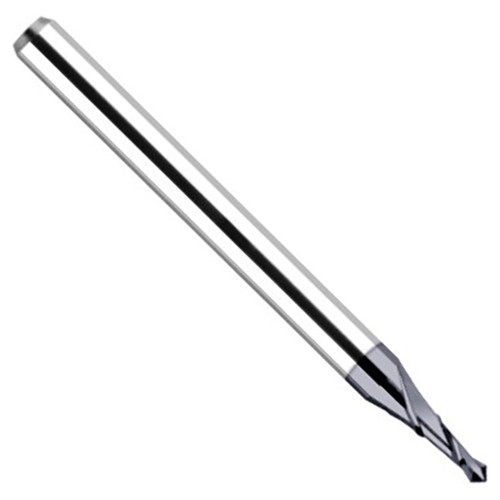

Harvey Tool 38216 | 1/4" Diameter x 3/4" Flute Length x 1/4" Straight Shank x 2-1/2" OAL 120 Degree Included Angle Uncoated Coated Solid Carbide Spotting Drill

$33.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (Inch):
1/4"
Size (Decimal Inch):
0.2500"
Drill Point Angle:
120 Degree
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Type:
Straight
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Finish/Coating:
Uncoated
Through Coolant:
No
Material:
Solid Carbide
Ships:
From Partner Facility
SKU:
10101623
UPC:
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
Features
  • 90 Degree available in long length!
  • Thinned Web to Reduce Walking
  • Self-Centering Point Geometry
  • 2 Flutes
  • Solid Carbide
  • CNC ground in the USA
Product Specifications
Drill Diameter (Decimal Inch) 0.2500"
Drill Diameter (Inch) 1/4"
Angle Per Side 60 Degrees
Included Angle 120 Degree
Flute Length (Decimal Inch) 0.7500"
Flute Length (Inch) 3/4"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (Inch) 1/4"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Finish/Coating Uncoated
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (3x)
Web Thickness (Decimal Inch) 0.0180"
Type II
Single or Double Single
