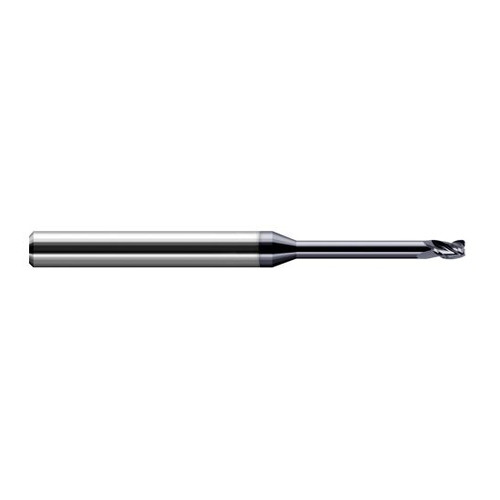

Harvey Tool 38331-C3 | 1/32" Diameter x 1/8" Shank x 0.046" LOC x 2-1/2" OAL x 0.005" Radius 3 Flute AlTiN Coated Carbide Corner Radius End Mill

About This Item

Product Specifications

Mill Diameter (Inch)	1/32"
Mill Diameter (Decimal Inch)	0.0310"
Corner Radius (Decimal Inch)	0.0050"
Number of Flutes	3
Finish/Coating	AlTiN
Length Of Cut (Decimal Inch)	0.0460"
Overall Reach (Inch)	1/4"
Overall Reach (Decimal Inch)	0.2500"
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.5000"
Shank Diameter (Inch)	1/8"
Shank Diameter (Decimal Inch)	0.1250"
Single or Double End	Single
Center Cutting (Yes/No)	Yes
Neck Diameter (Decimal Inch)	0.0300"
LOC Multiple	1.5x
Reach Multiple	8x
