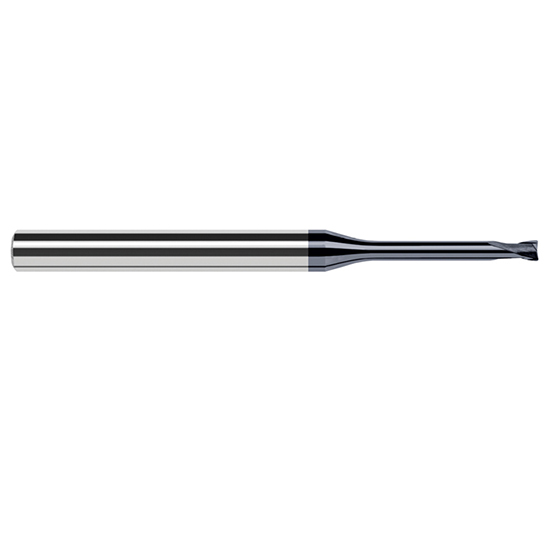

Harvey Tool 40262-C6 | 1/16" Diameter x 1/4" Shank x 0.0500" LOC x 2-1/2" OAL 0.0100" Radius AlTiN Nano Coated Carbide Corner Radius & Corner Chamfer End Mil

About This Item

Product Specifications

Mill Diameter (Inch)	1/16"
Mill Diameter (Decimal Inch)	0.0620"
Corner Radius (Decimal Inch)	0.0100"
Number of Flutes	2
Finish/Coating	AlTiN Nano
Length Of Cut (Decimal Inch)	0.0500"
Overall Reach (Inch)	3/32"
Overall Reach (Decimal Inch)	0.0930"
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.5000"
Shank Diameter (Inch)	1/4"
Shank Diameter (Decimal Inch)	0.2500"
Single or Double End	Single
Center Cutting (Yes/No)	Yes
Neck Diameter (Decimal Inch)	0.0600"
LOC Multiple	0.8x
Reach Multiple	1.5x
Metric (Yes/No)	No
