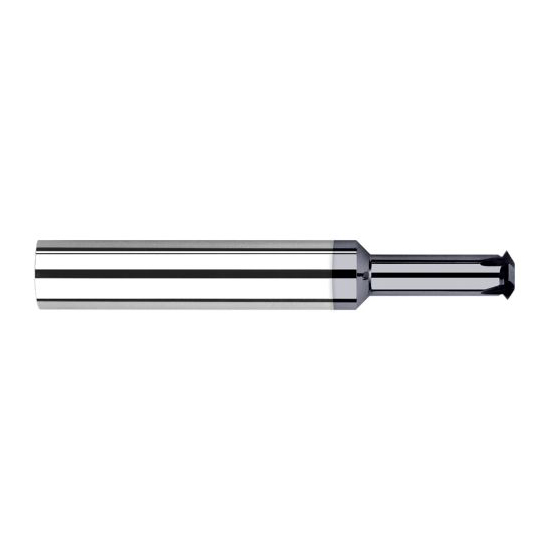

Harvey Tool 41475-C3 | Thread 0.4500" Diameter 6FL 60 Degree Incuded Angle AlTiN Coated Carbide Single Profile Thread Mill

$149.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.4500"
Max Depth of Thread (Inch):
1-3/8"
Max Depth of Thread (Decimal Inch):
1.3750"
Number of Flutes:
6
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3"
Ships:
From Partner Facility
SKU:
25120330
UPC:
Weight:
0.21 LBS
Shipping:
Free Shipping
Harvey Tool 41475-C3 | Thread 0.4500" Diameter 6FL 60 Degree Incuded Angle AlTiN Coated Carbide Single Profile Thread Mill
Features
  • Single thread form - can mill any pitch
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Milling Diameter (Decimal Inch) 0.4500"
Max Depth of Thread (Inch) 1-3/8"
Max Depth of Thread (Decimal Inch) 1.3750"
Number of Flutes 6
Finish/Coating AlTiN
Included Angle 60 Degree
Shank Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Neck Diameter (Decimal Inch) 0.3000"
Length of Cut (Decimal Inch) 0.0870"
Angle Per Side 30 Degrees

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.4500"
Max Depth of Thread (Inch):
1-3/8"
Max Depth of Thread (Decimal Inch):
1.3750"
Number of Flutes:
6
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3"
Ships:
From Partner Facility
