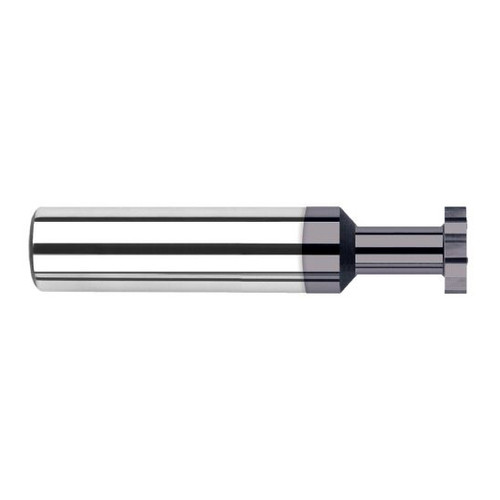

Harvey Tool 43431-C3 | 5/8" Diameter x Cutting Width x 5/8" Shank AlTiN Coated Carbide Straight Tooth Keyseat Cutter

$213.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6250"
Cutting Width (Decimal Inch):
0.0624"
Tooth Configuration:
Straight
Neck Length (Inch):
1"
Neck Length (Decimal Inch):
1.0000"
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Ships:
From Partner Facility
SKU:
25111236
UPC:
Weight:
0.43 LBS
Shipping:
Free Shipping
Harvey Tool 43431-C3 | 5/8" Diameter x Cutting Width x 5/8" Shank AlTiN Coated Carbide Straight Tooth Keyseat Cutter
Product Specifications
Milling Diameter (Decimal Inch) 0.6250"
Milling Diameter (Inch) 5/8"
Neck Diameter (Decimal Inch) 0.3000"
Cutter Width (Decimal Inch) 0.0624"
Neck Length (Decimal Inch) 1.0000"
Neck Length (Inch) 1"
Overall Length (Decimal Inch) 3.5000"
Overall Length (Inch) 3-1/2"
Radial Depth Of Cut (Decimal Inch) 0.1520"
Radius (Decimal Inch) 0.0312"
Radius (Inch) 1/32"
Number of Flutes 6
Reach Multiple 1.5x
Type I
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (Inch) 5/8"
Metric No
Coating AlTiN

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6250"
Cutting Width (Decimal Inch):
0.0624"
Tooth Configuration:
Straight
Neck Length (Inch):
1"
Neck Length (Decimal Inch):
1.0000"
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Ships:
From Partner Facility
