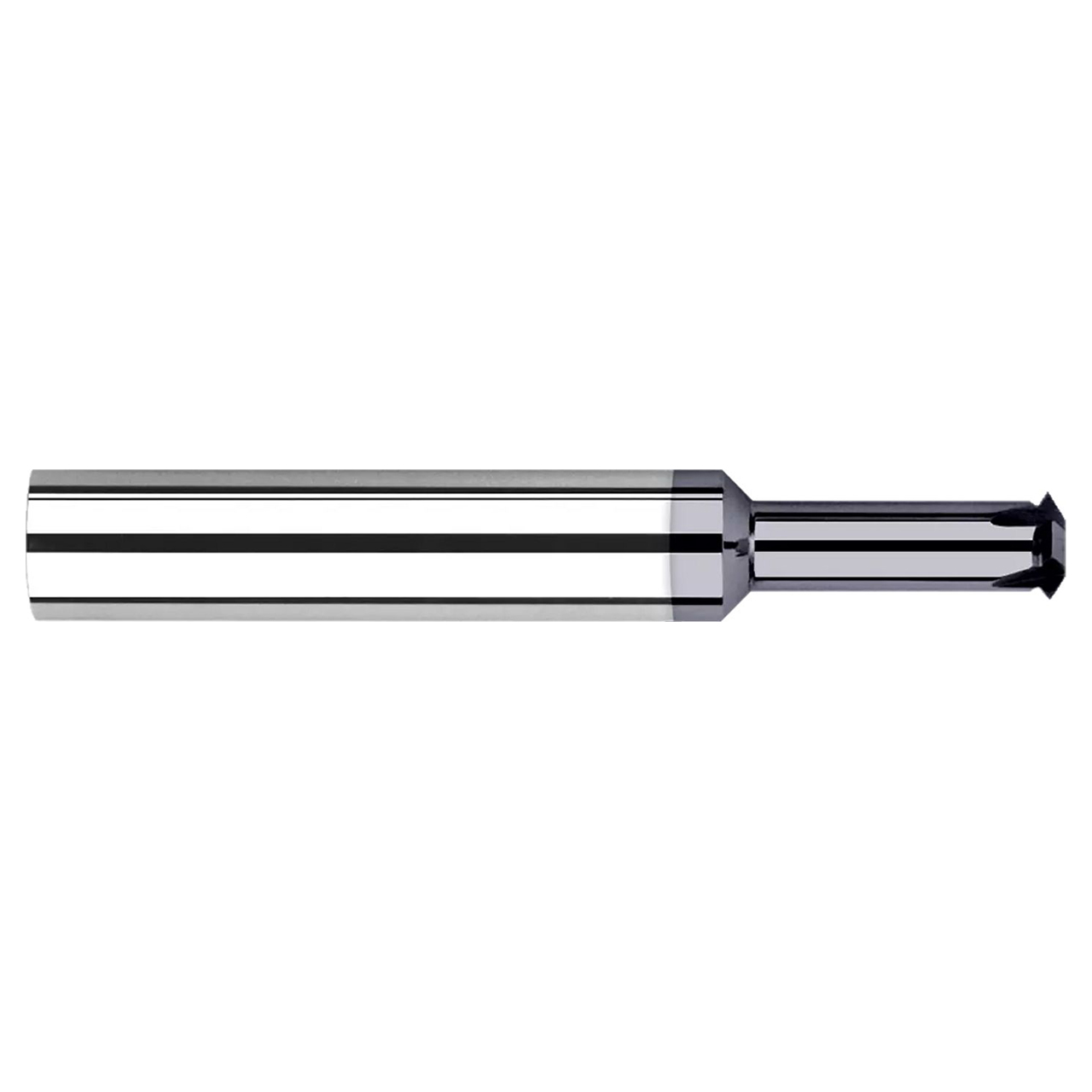

Harvey Tool 54290-C3 | 0.6250" (5/8) Diameter x 0.1150" LOC x 0.6250" (5/8) Shank x 6 Flute AlTiN Coated Carbide Multi-Form Thread Milling Cutter

$233.60
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Neck Diameter (Decimal Inch):
0.4200"
Length of Cut (Decimal Inch):
0.1150"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Included Angle:
60 Degree
Number of Flutes:
6
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Finish/Coating:
C3
interval quantity:
1
SKU:
25211183
UPC:
Weight:
0.43 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Harvey Tool Thread Milling Cutters - Single Form - UN Threads can mill multiple pitches, and cut internal and external

  • Tip of included angle ground to a point
  • Mills right hand and left hand threads
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number54290-C3
Cutter Diameter (Inch)0.6250" (5/8)
Neck Diameter (Inch)0.4200"
Length of Cut (Inch)0.1150"
Overall Length (Inch)4.0000" (4)
Max Depth of Thread (Inch)2.2500" (2-1/4)
Angle per Side30
Included Angle60
Flutes6
Size1
Shank Diameter (Inch)0.6250" (5/8)
CoatingC3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Neck Diameter (Decimal Inch):
0.4200"
Length of Cut (Decimal Inch):
0.1150"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Included Angle:
60 Degree
Number of Flutes:
6
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Finish/Coating:
C3
interval quantity:
1
