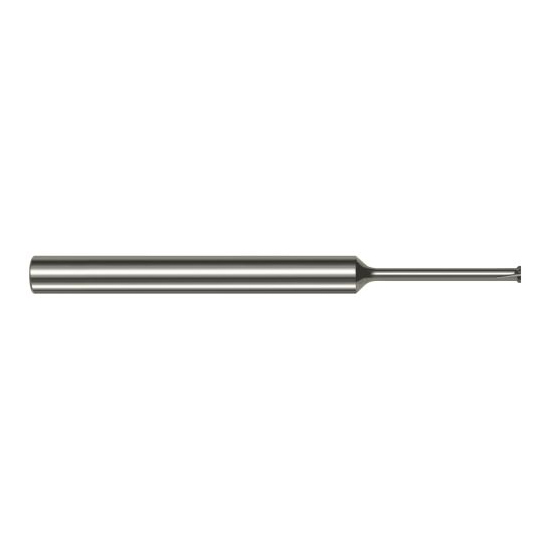

Product Specifications
| Head Diameter (Decimal Inch) | 0.0800" |
| Neck Diameter (Decimal Inch) | 0.0600" |
| Chamfer Center Diameter (Decimal Inch) | 0.0733" |
| Length Of Cut (Decimal Inch) | 0.0077" |
| Neck Length (Decimal Inch) | 0.3750" |
| Neck Length (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Chamfer Center Length (Decimal Inch) | 0.0638" |
| End Length (Decimal Inch) | 0.0600" |
| Angle Per Side | 45 Degree |
| Included Angle | 90 Degree |
| Number of Flutes | 5 |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Head Diameter (Decimal Inch):
0.0800"
Neck Length (Decimal Inch):
0.3750"
Number of Flutes:
5
Finish/Coating:
Uncoated
Material:
Solid Carbide
Ships:
From Partner Facility
IsDiscontinued:
