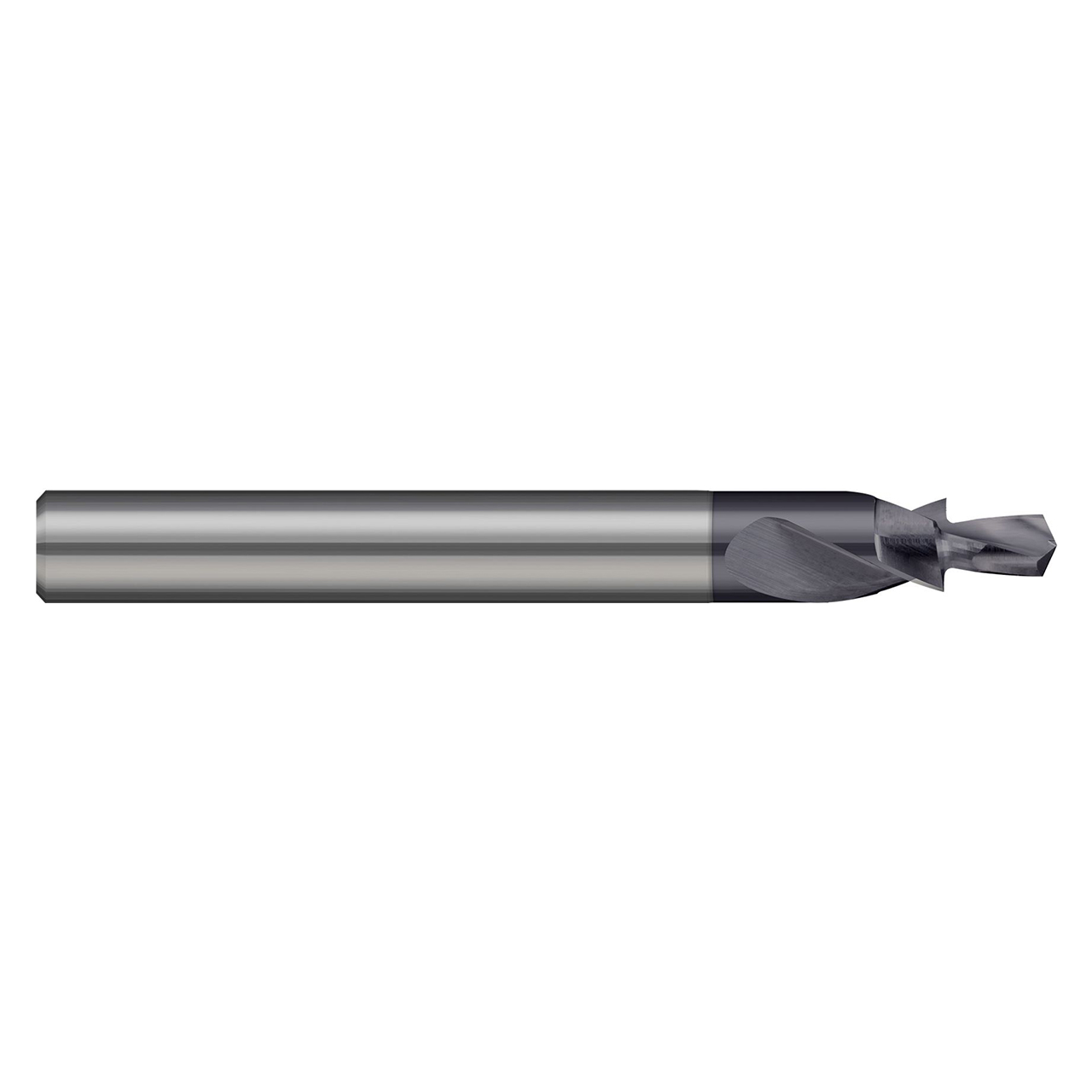

Product Specifications
| Manufacturer Part Number | 700128-C3 |
| Cutter Diameter (Inch) | 23/32" |
| Cutter Diameter (Decimal Inch) | 0.719" |
| Drill Diameter(Decimal Inch) | 0.469" |
| Flute Length (Decimal Inch) | 1.172" |
| Flute Length (Inch) | 1-11/64" |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.000" |
| Point Angle (Degree) | 130 Degree |
| Number of Flute | 2 |
| Size | 7/16" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Coating | C3 |
| Drill Length (Inch) | 45/64" |
| Drill Length (Decimal Inch) | 0.703" |
| Product Type | Combined Drill Counterbore |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
23/32"
Cutting Diameter (Decimal Inch):
0.7190"
Cutting Diameter (mm):
18.26mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Finish/Coating:
C3
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Number of Flutes:
2
Point Angle (Degree):
130 Degree
interval quantity:
1
