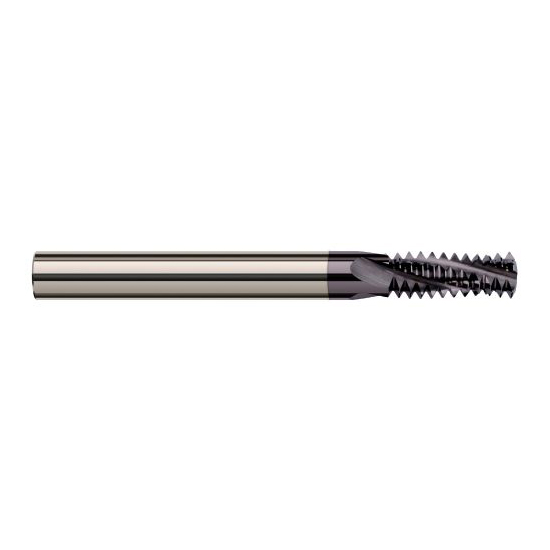

Harvey Tool 70035-C3 | 10-28 Thread 0.1200" Cutting Diameter 3FL AlTiN Coated Carbide Helical Flute Thread Mill

$124.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
10-28
Cutter Diameter (Decimal Inch):
0.1200"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
3
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3120"
Finish/Coating:
AlTiN
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25120012
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Harvey Tool 70035-C3 | 10-28 Thread 0.1200" Cutting Diameter 3FL AlTiN Coated Carbide Helical Flute Thread Mill
Features
  • AlTiN coating works great in steels up to 60Rc
  • TiB2 coating is outstanding in aluminum
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 10-28
Milling Diameter (Decimal Inch) 0.1200"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.3120"
Length of Cut (Inch) 5/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (Inch) 2"
Finish/Coating AlTiN
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
