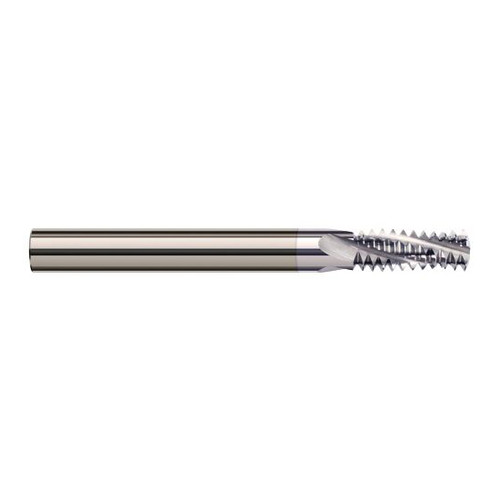

Harvey Tool 70064-C8 | 3/8-16 Thread 0.2850" Cutting Diameter 4FL TiB2 Coated Carbide Helical Flute Thread Mill

$221.50
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
3/8-16
Cutter Diameter (Decimal Inch):
0.2850"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Number of Flutes:
4
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Finish/Coating:
TiB2
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25120068
UPC:
Weight:
0.10 LBS
Shipping:
Free Shipping
Harvey Tool 70064-C8 | 3/8-16 Thread 0.2850" Cutting Diameter 4FL TiB2 Coated Carbide Helical Flute Thread Mill
Features
  • AlTiN coating works great in steels up to 60Rc
  • TiB2 coating is outstanding in aluminum
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 3/8-16
Milling Diameter (Decimal Inch) 0.2850"
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (Inch) 5/16"
Number of Flutes 4
Length of Cut (Decimal Inch) 0.7500"
Length of Cut (Inch) 3/4"
Overall Length (Decimal Inch) 3.0000"
Overall Length (Inch) 3"
Finish/Coating TiB2
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
