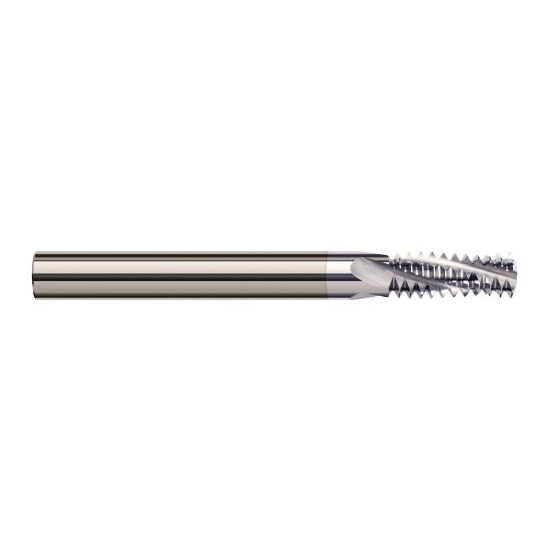

Harvey Tool 70214-C8 | 1/4, 3/8-18 Thread 0.3050" Cutting Diameter 4FL TiB2 Coated Carbide Helical Flute Thread Mill

$233.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
1/4, 3/8-18
Cutter Diameter (Decimal Inch):
0.3050"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Number of Flutes:
4
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Finish/Coating:
TiB2
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25119999
UPC:
Weight:
0.11 LBS
Shipping:
Free Shipping
Harvey Tool 70214-C8 | 1/4, 3/8-18 Thread 0.3050" Cutting Diameter 4FL TiB2 Coated Carbide Helical Flute Thread Mill
Features
  • Cuts internal and external 60 Degree National Pipe Taper (N.P.T.) threads
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 1/4, 3/8-18
Milling Diameter (Decimal Inch) 0.3050"
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (Inch) 5/16"
Number of Flutes 4
Length of Cut (Decimal Inch) 0.6250"
Length of Cut (Inch) 5/8"
Overall Length (Decimal Inch) 3.0000"
Overall Length (Inch) 3"
Finish/Coating TiB2
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
