Product Specifications
| Manufacturer Part Number | 707212 |
| Cutter Diameter (Inch) | 3/16" |
| Cutter Diameter (Decimal Inch) | 0.188" |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.000" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Number of Flute | 5 |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Coating | Uncoated |

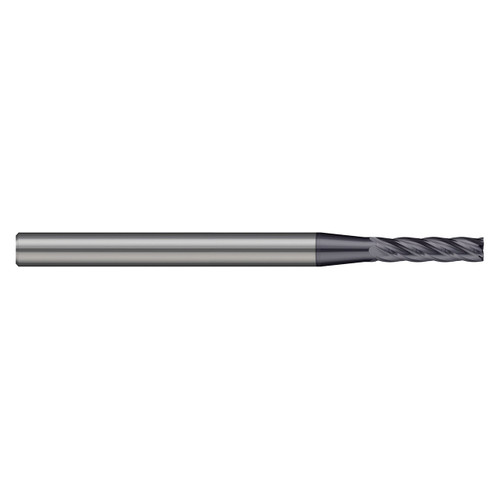

| Product Type | Miniature Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
3/16"
Cutting Diameter (Decimal Inch):
0.1880"
Cutting Diameter (mm):
4.78mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.76mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Number of Flutes:
5
interval quantity:
1
