Product Specifications
| Manufacturer Part Number | 708324 |
| Cutter Diameter (Decimal Inch) | 0.375" |
| Cutter Diameter (Inch) | 3/8" |
| Neck Diameter (Decimal Inch) | 0.350" |
| Length of Cut (Decimal Inch) | 0.750" |
| Length of Cut (Inch) | 3/4" |
| Overall Reach (Decimal Inch) | 1.437" |
| Overall Reach (Inch) | 1-7/16" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Number of Flute | 2 |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/8" |
| Metric | No |
| Coating | PCD |

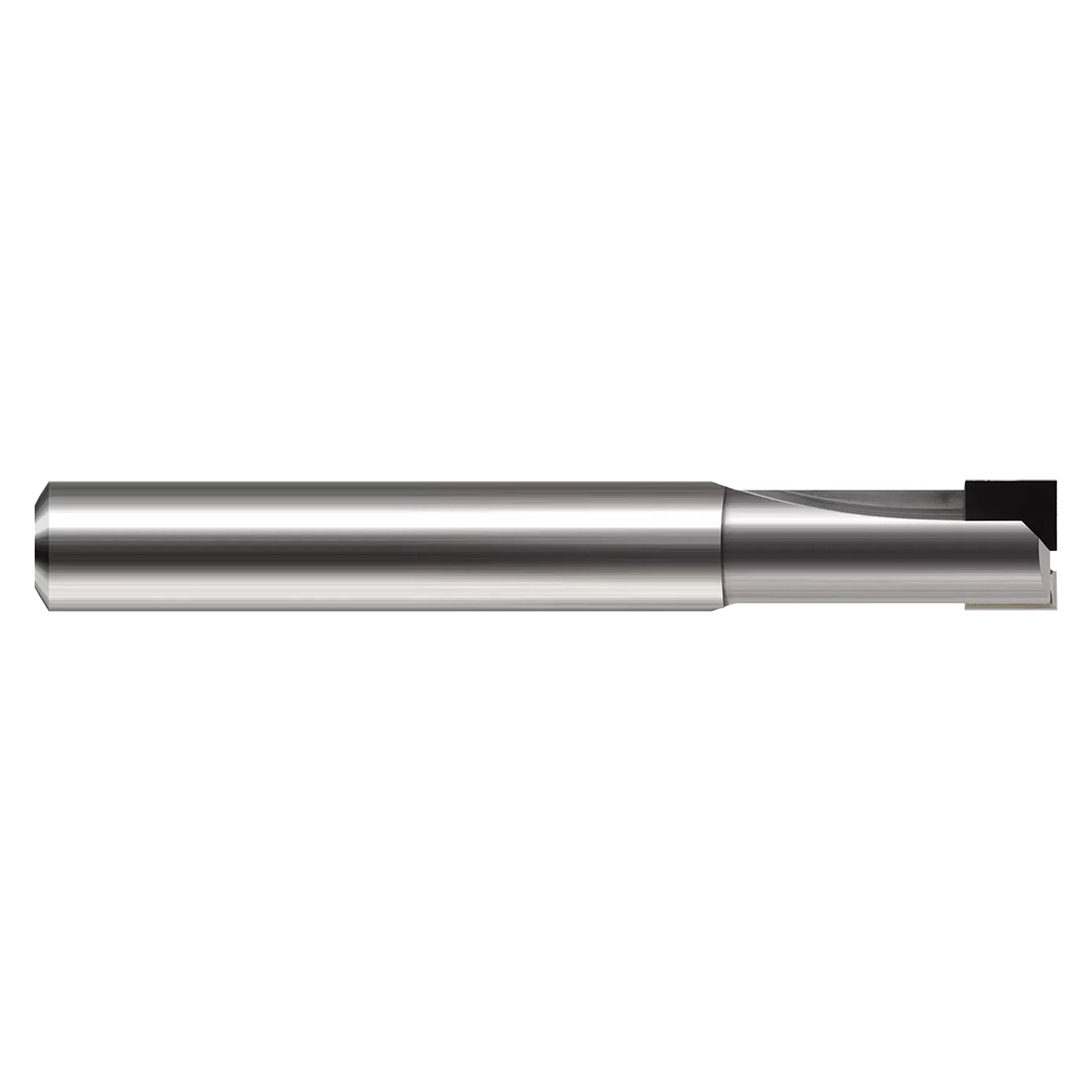

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
2
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Finish/Coating:
PCD
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Overall Reach (Inch):
1-7/16"
Overall Reach (Decimal):
1.4370"
Overall Reach (mm):
36.50mm
Interval quantity:
1
