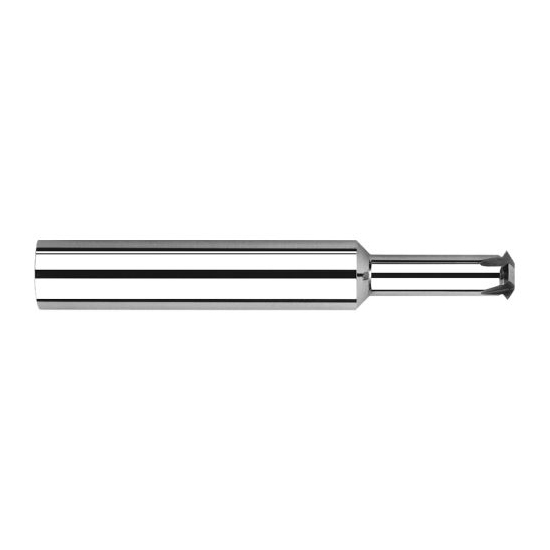

Harvey Tool 71070 | 1/2 Thread 0.3880" Diameter 4FL 60 Degree Incuded Angle Uncoated Coated Carbide Single Profile Thread Mill

$122.20
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
1/2
Cutter Diameter (Decimal Inch):
0.3880"
Max Depth of Thread (Inch):
3/4"
Max Depth of Thread (Decimal Inch):
0.7500"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3"
Ships:
From Partner Facility
SKU:
25120220
UPC:
Weight:
0.26 LBS
Shipping:
Free Shipping
Harvey Tool 71070 | 1/2 Thread 0.3880" Diameter 4FL 60 Degree Incuded Angle Uncoated Coated Carbide Single Profile Thread Mill
Features
  • Single thread form - can mill any pitch
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 1/2
Milling Diameter (Decimal Inch) 0.3880"
Max Depth of Thread (Inch) 3/4"
Max Depth of Thread (Decimal Inch) 0.7500"
Number of Flutes 4
Finish/Coating Uncoated
Included Angle 60 Degree
Shank Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Neck Diameter (Inch) 1/4"
Neck Diameter (Decimal Inch) 0.2500"
Length of Cut (Decimal Inch) 0.0800"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
