Product Specifications
| Manufacturer Part Number | 712608 |
| Pilot Diameter (Decimal Inch) | 0.249" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Radius (Decimal Inch) | 0.125" |
| Radius (Inch) | 1/8" |
| Number of Flute | 4 |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Metric | No |
| Coating | Uncoated |
| Pilot Flare | 2 |
| Shoulder Flare | 2 |
| Double Ended | No |

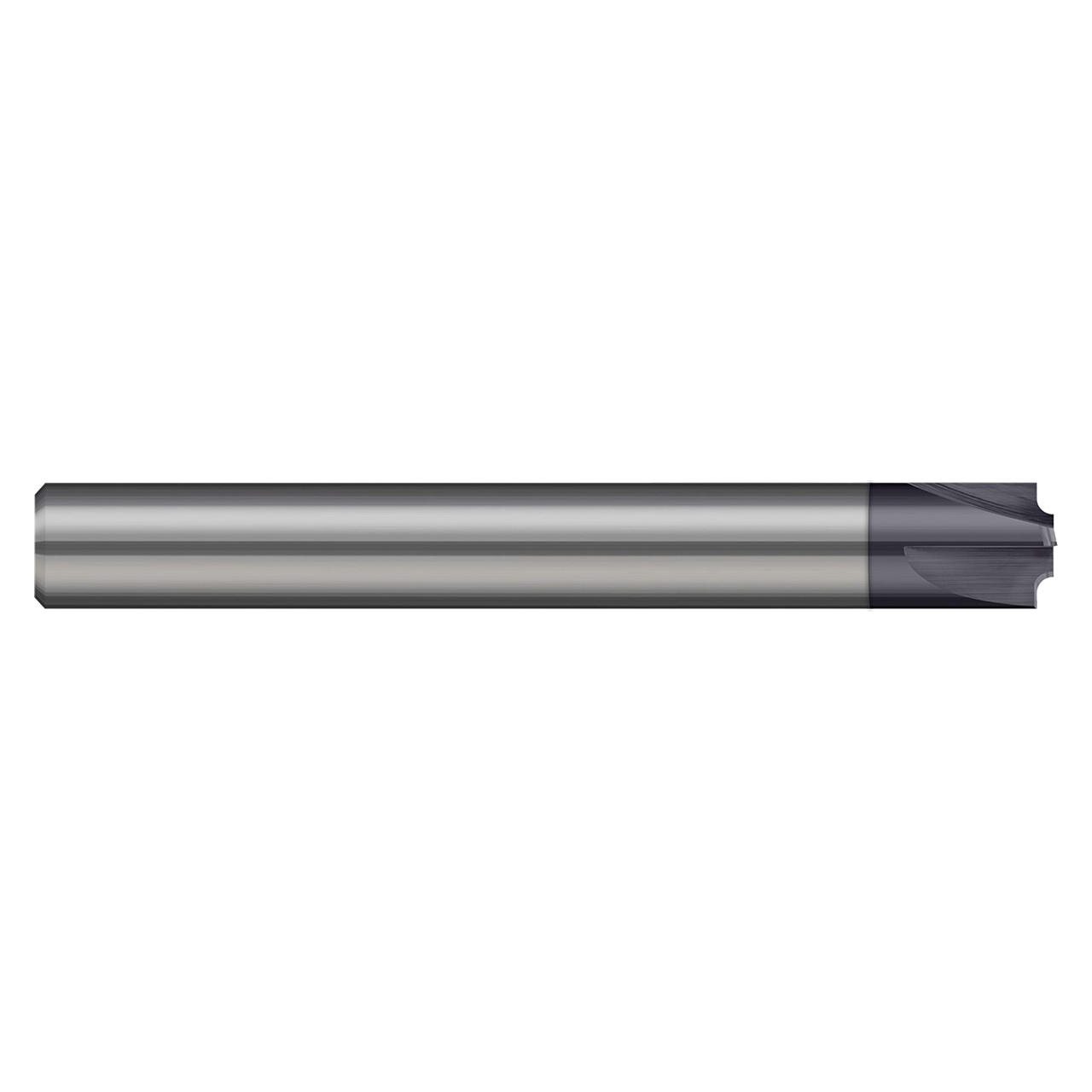

| Product Type | Corner Rounding End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Radius (Inch):
1/8"
Radius (Decimal Inch):
0.1250"
Radius (mm):
3.18mm
Number of Flutes:
4
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Interval quantity:
1
