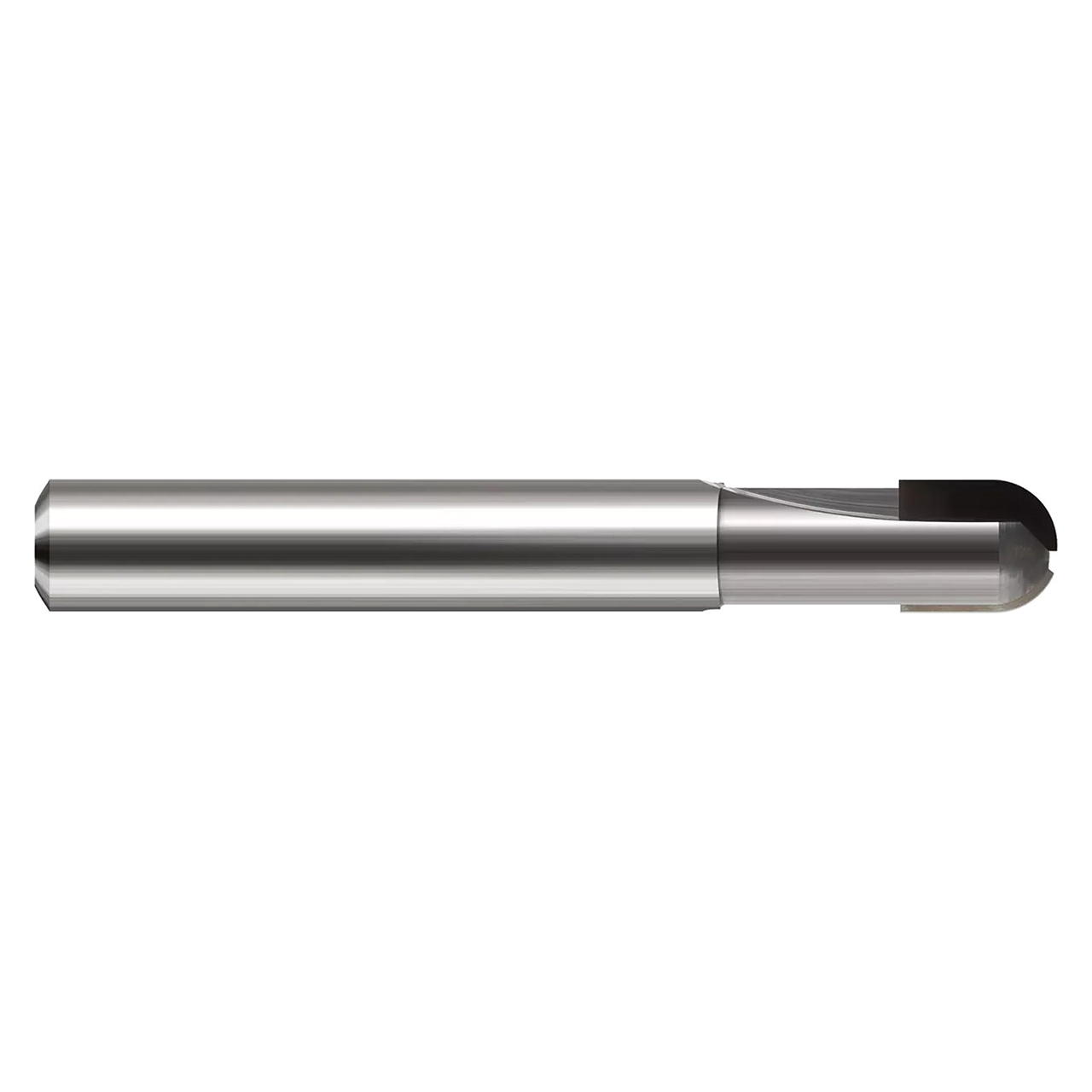

Product Specifications
| Manufacturer Part Number | 714108 |
| Cutter Diameter (Decimal Inch) | 0.125" |
| Cutter Diameter (Inch) | 1/8" |
| Neck Diameter (Decimal Inch) | 0.115" |
| Length of Cut (Decimal Inch) | 0.500" |
| Length of Cut (Inch) | 1/2" |
| Overall Reach (Decimal Inch) | 0.750" |
| Overall Reach (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Number of Flute | 1 |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | PCD |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
1
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
PCD
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Overall Reach (mm):
19.05mm
Interval quantity:
1
