| Manufacturer Part Number | 715207-C3 |
| Cutter Diameter (Decimal Inch) | 0.055" |
| Cutter Diameter (mm) | 1.40mm |
| Neck Diameter (Decimal Inch) | 0.039" |
| Neck Diameter (mm) | 1.00mm |
| Length of Cut (Decimal Inch) | 0.054" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Corner Radius (Decimal Inch) | 0.015" |
| Corner Radius (Inch) | 1/64" |
| Angle per Side (Degree) | 12 Degree |
| Included Angle (Degree) | 2 Degree |
| Number of Flute | 2 |
| O Ring X Section (Decimal Inch) | 0.070" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | C3 |

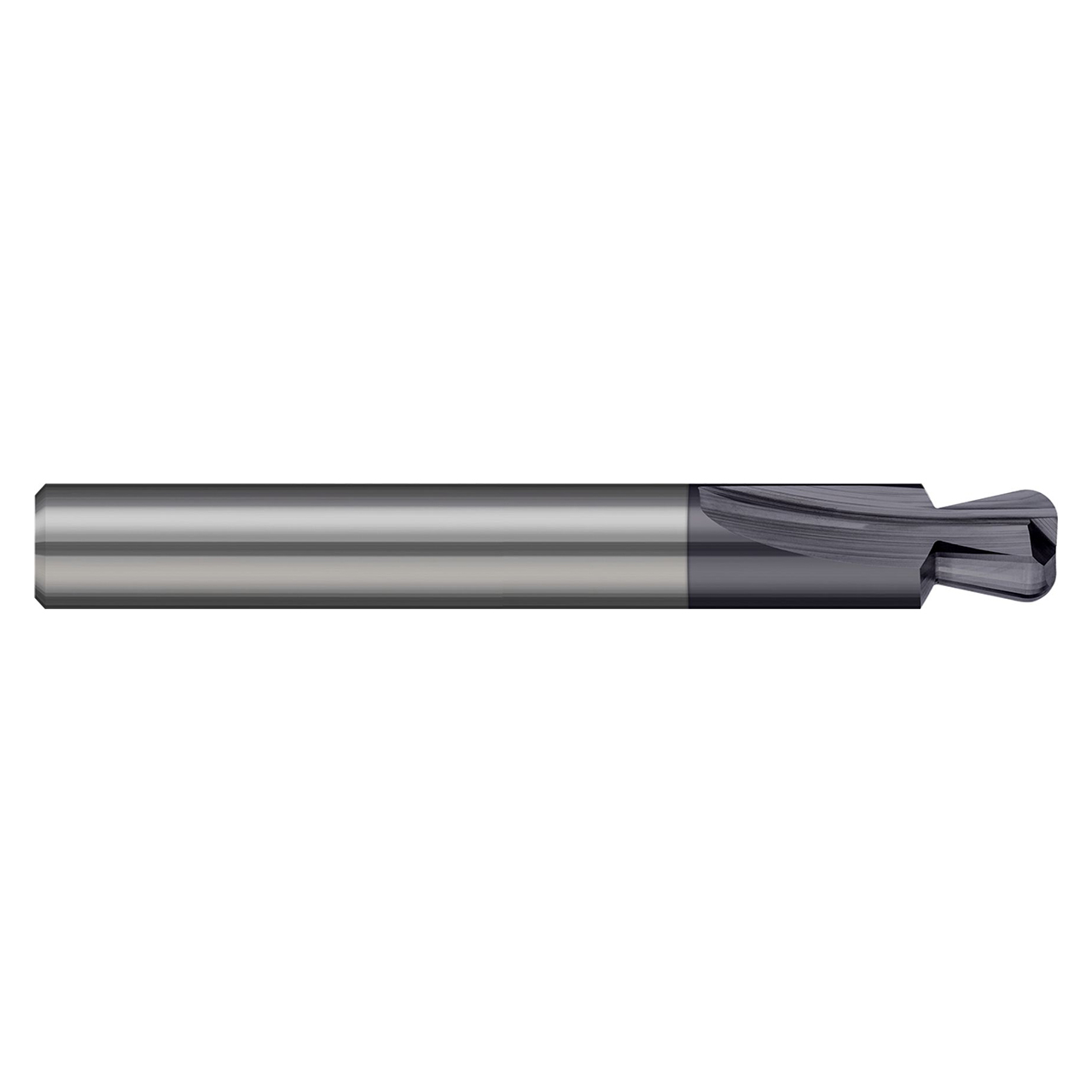

| Product Type | Specialty Dovetail Cutter |
