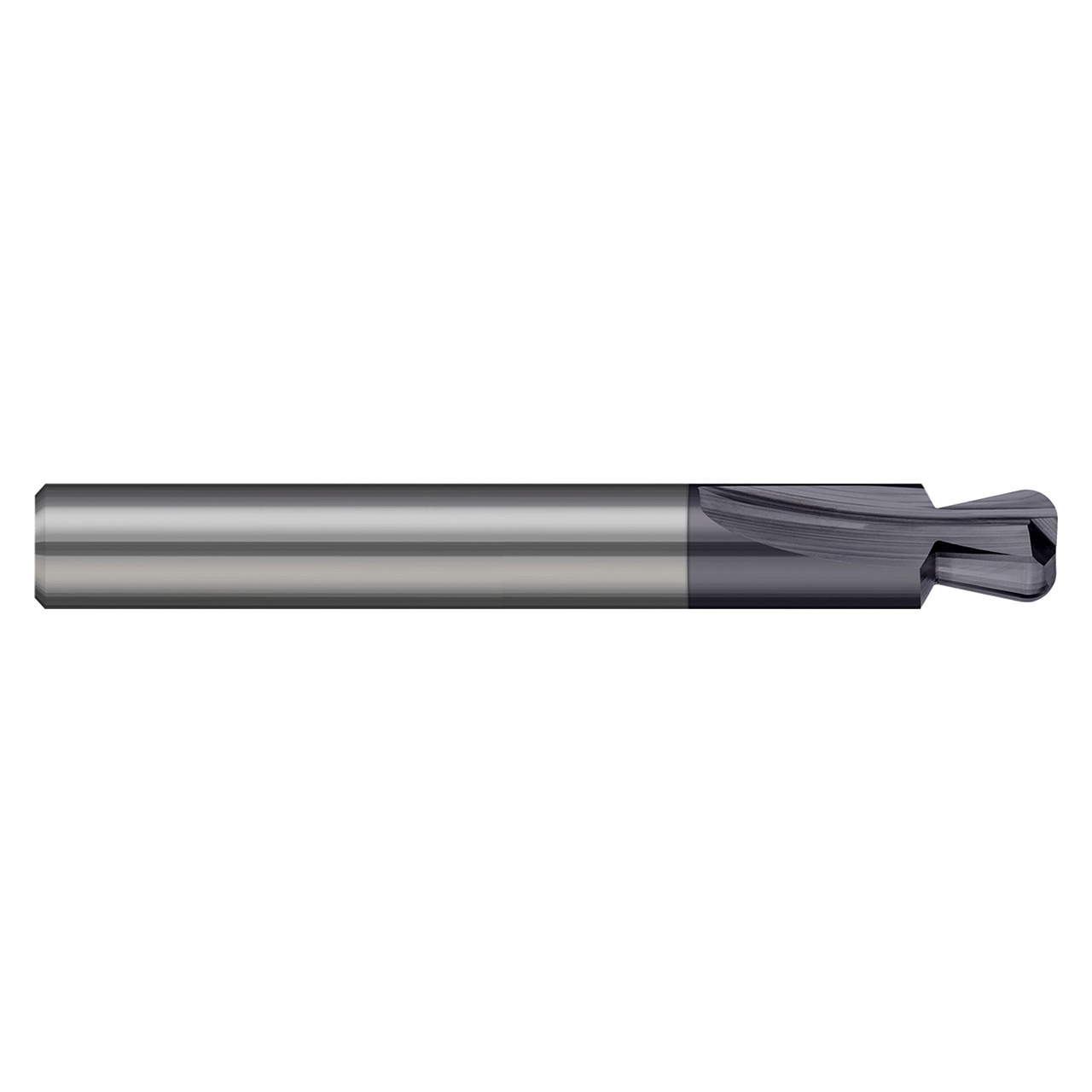

Harvey Tool 715221-C3 | 0.113" Diameter x 1/8" Shank x 1/32" Corner Radius x 1-1/2" OAL 2 Degree Included Angle 2 Flute C3 Coated Dovetail Cutter

$85.40
Brand:
Harvey Tool
Included Angle:
2 Degree
Cutting Diameter (Inch):
7/64"
Cutting Diameter (Decimal Inch):
0.1130"
Cutting Diameter (mm):
2.87mm
Finish/Coating:
C3
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Interval quantity:
1
SKU:
25352265
Weight:
0.01 LBS
Shipping:
Free Shipping
Harvey Tool 715221-C3 | 0.113" Diameter x 1/8" Shank x 1/32" Corner Radius x 1-1/2" OAL 2 Degree Included Angle 2 Flute C3 Coated Dovetail Cutter

Product Specifications
Manufacturer Part Number715221-C3
Cutter Diameter (Decimal Inch)0.113"
Neck Diameter (Decimal Inch)0.079"
Neck Diameter (mm)2.00mm
Length of Cut (Decimal Inch)0.115"
Overall Length (Decimal Inch)1.500"
Overall Length (Inch)1-1/2"
Corner Radius (Decimal Inch)0.031"
Corner Radius (Inch)1/32"
Angle per Side (Degree)12 Degree
Included Angle (Degree)2 Degree
Number of Flute2
O Ring X Section (Decimal Inch)0.139"
Shank Diameter (Decimal Inch)0.125"
Shank Diameter (Inch)1/8"
MetricNo
CoatingC3
Product TypeSpecialty Dovetail Cutter

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Included Angle:
2 Degree
Cutting Diameter (Inch):
7/64"
Cutting Diameter (Decimal Inch):
0.1130"
Cutting Diameter (mm):
2.87mm
Finish/Coating:
C3
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Interval quantity:
1
