Product Specifications
| Manufacturer Part Number | 715228 |
| Cutter Diameter (Decimal Inch) | 0.171" |
| Neck Diameter (Decimal Inch) | 0.111" |
| Length of Cut (Decimal Inch) | 0.176" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Corner Radius (Decimal Inch) | 0.031" |
| Corner Radius (Inch) | 1/32" |
| Angle per Side (Degree) | 12 Degree |
| Included Angle (Degree) | 2 Degree |
| Number of Flute | 2 |
| O Ring X Section (Decimal Inch) | 0.210" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Metric | No |
| Coating | Uncoated |

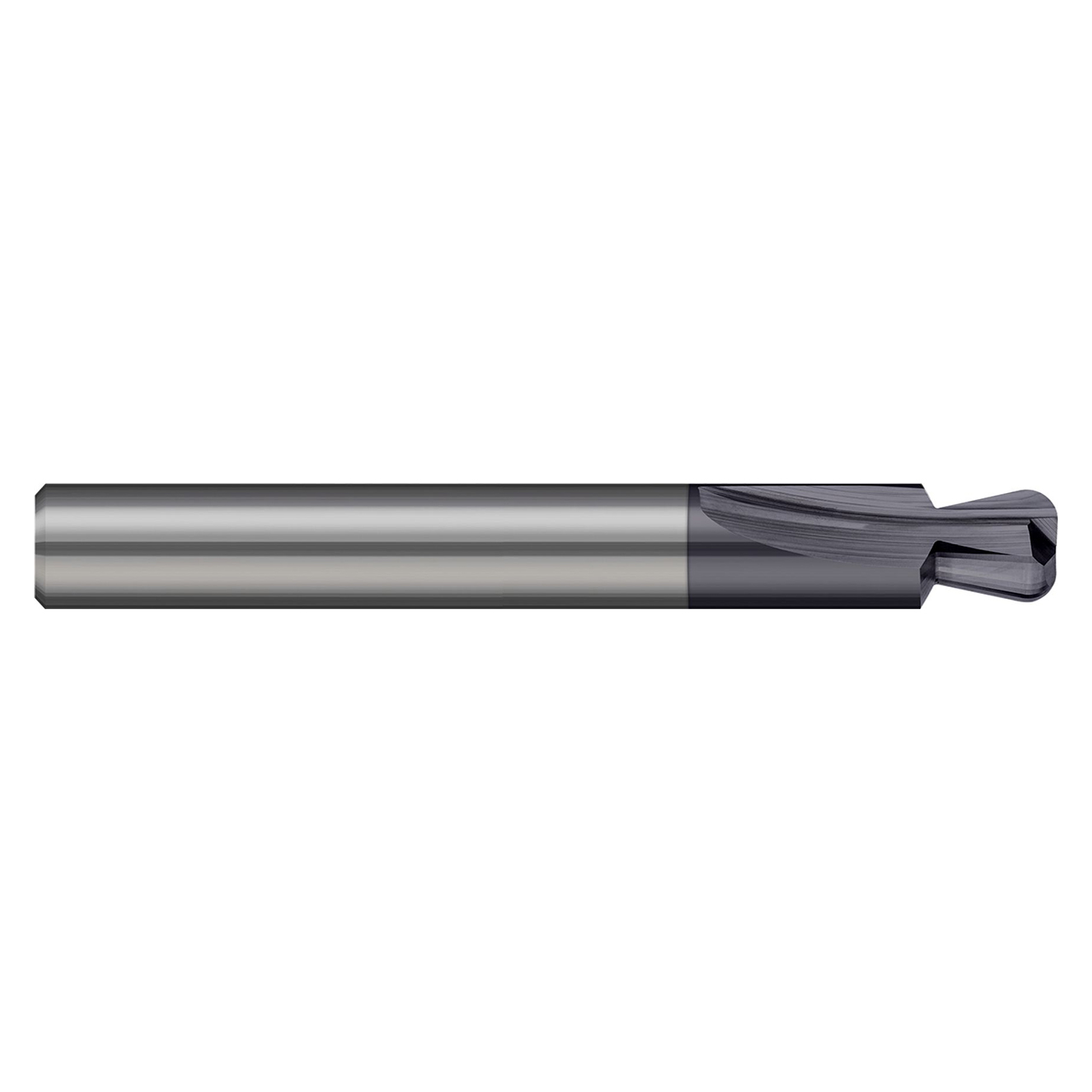

| Product Type | Specialty Dovetail Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
2 Degree
Cutting Diameter (Inch):
11/64"
Cutting Diameter (Decimal Inch):
0.1710"
Cutting Diameter (mm):
4.34mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.75mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Interval quantity:
1
