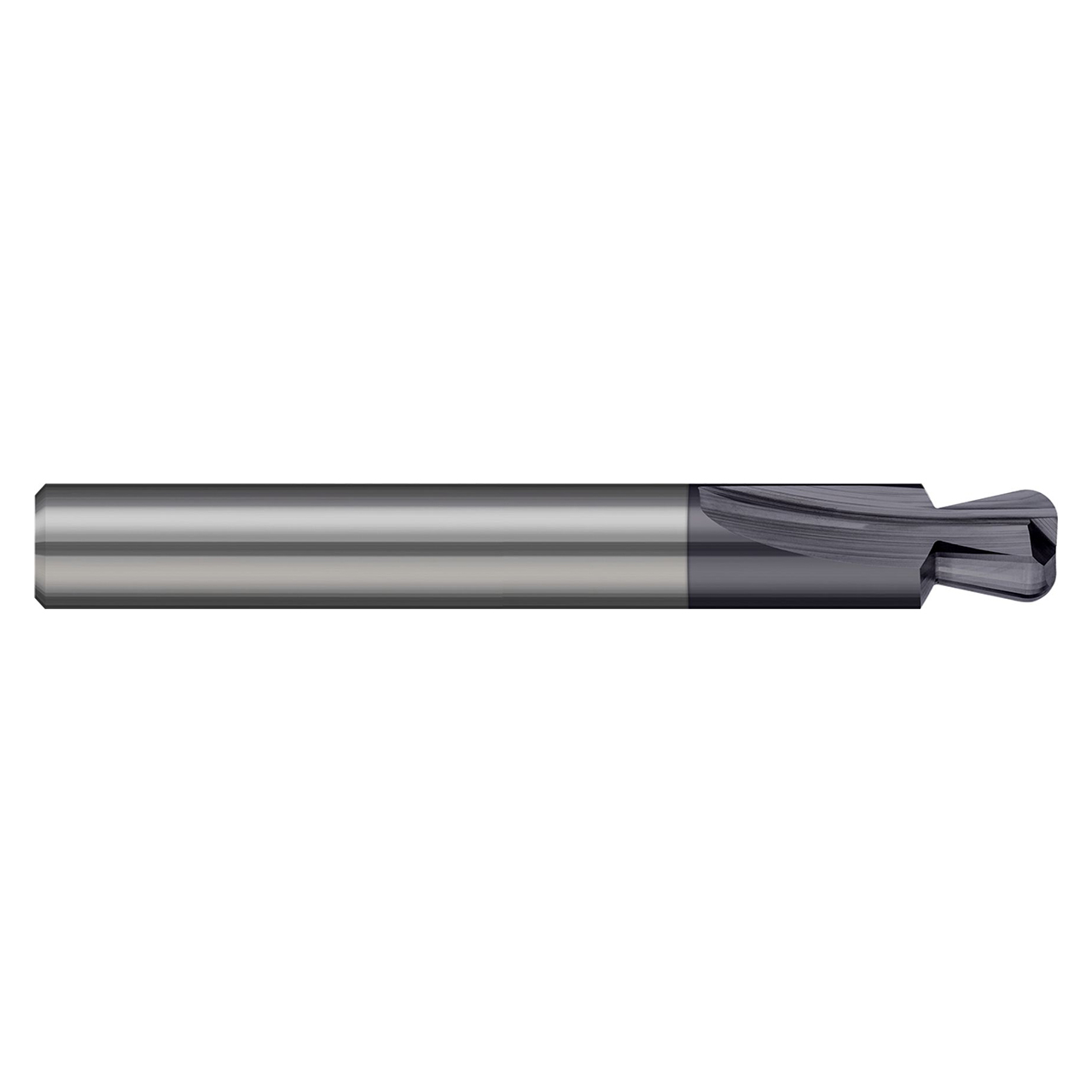

Harvey Tool 715242-C3 | 0.315" Diameter x 3/8" Shank x 3/32" Corner Radius x 2-1/2" OAL 2 Degree Included Angle 2 Flute C3 Coated Dovetail Cutter

$138.00
Brand:
Harvey Tool
Included Angle:
2 Degree
Cutting Diameter (Inch):
5/16"
Cutting Diameter (Decimal Inch):
0.3150"
Cutting Diameter (mm):
8.00mm
Finish/Coating:
C3
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Interval quantity:
1
SKU:
25352274
Weight:
0.13 LBS
Shipping:
Free Shipping
Harvey Tool 715242-C3 | 0.315" Diameter x 3/8" Shank x 3/32" Corner Radius x 2-1/2" OAL 2 Degree Included Angle 2 Flute C3 Coated Dovetail Cutter

Product Specifications
Manufacturer Part Number715242-C3
Cutter Diameter (Decimal Inch)0.315"
Cutter Diameter (mm)8.00mm
Neck Diameter (Decimal Inch)0.221"
Length of Cut (Decimal Inch)0.323"
Overall Length (Decimal Inch)2.500"
Overall Length (Inch)2-1/2"
Corner Radius (Decimal Inch)0.093"
Corner Radius (Inch)3/32"
Angle per Side (Degree)12 Degree
Included Angle (Degree)2 Degree
Number of Flute2
O Ring X Section (Decimal Inch)0.375"
O Ring X Section (Inch)3/8"
Shank Diameter (Decimal Inch)0.375"
Shank Diameter (Inch)3/8"
MetricNo
CoatingC3
Product TypeSpecialty Dovetail Cutter
