Product Specifications
| Manufacturer Part Number | 715816 |
| Cutter Diameter (Decimal Inch) | 0.250" |
| Cutter Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.175" |
| Length of Cut (Decimal Inch) | 0.375" |
| Length of Cut (Inch) | 3/8" |
| Overall Reach (Decimal Inch) | 1.250" |
| Overall Reach (Inch) | 1-1/4" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.010" |
| Angle per Side (Degree) | 5 Degree |
| Included Angle (Degree) | 10 Degree |
| Number of Flute | 4 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | Uncoated |

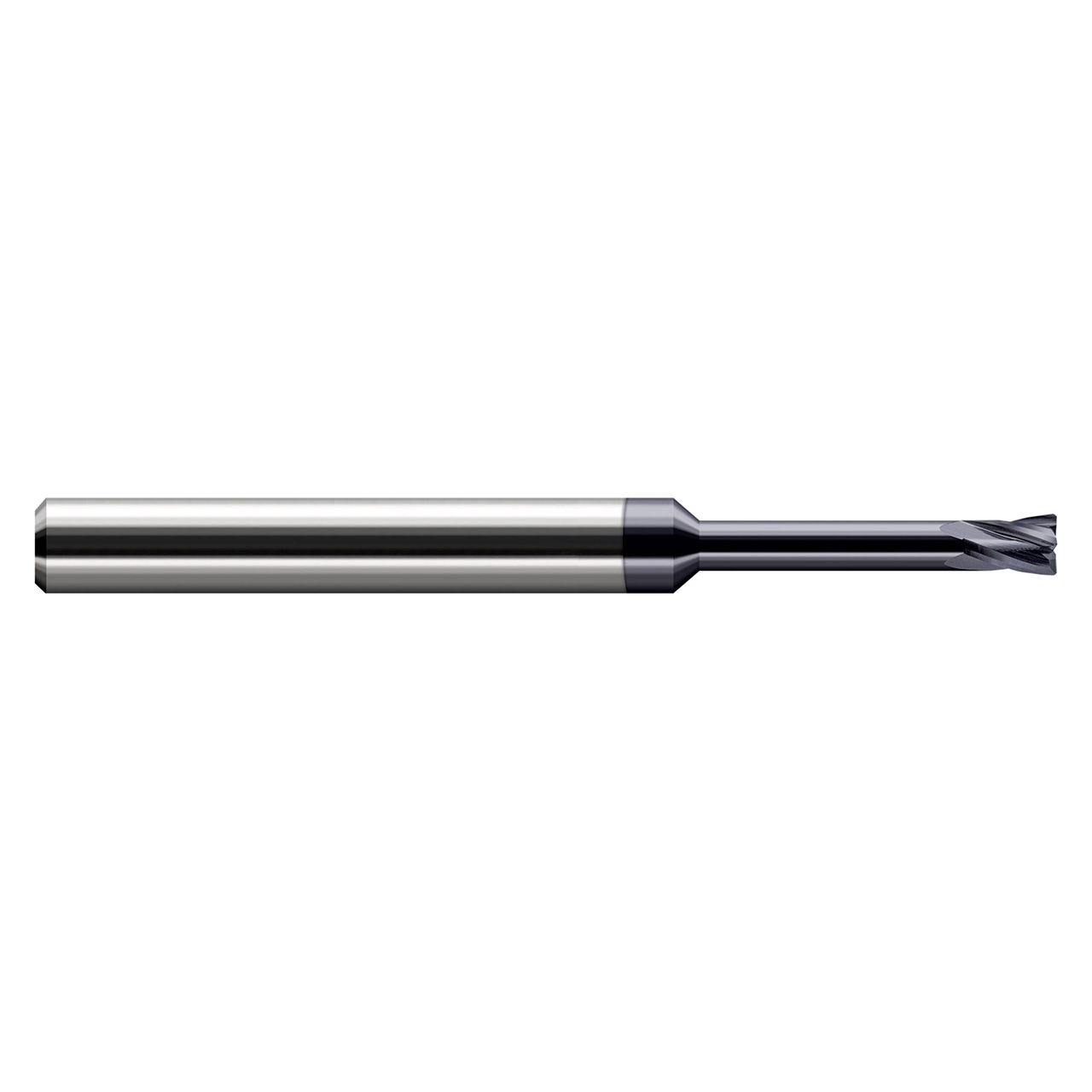

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
4
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0100"
Corner Radius (mm):
0.25mm
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Interval quantity:
1
