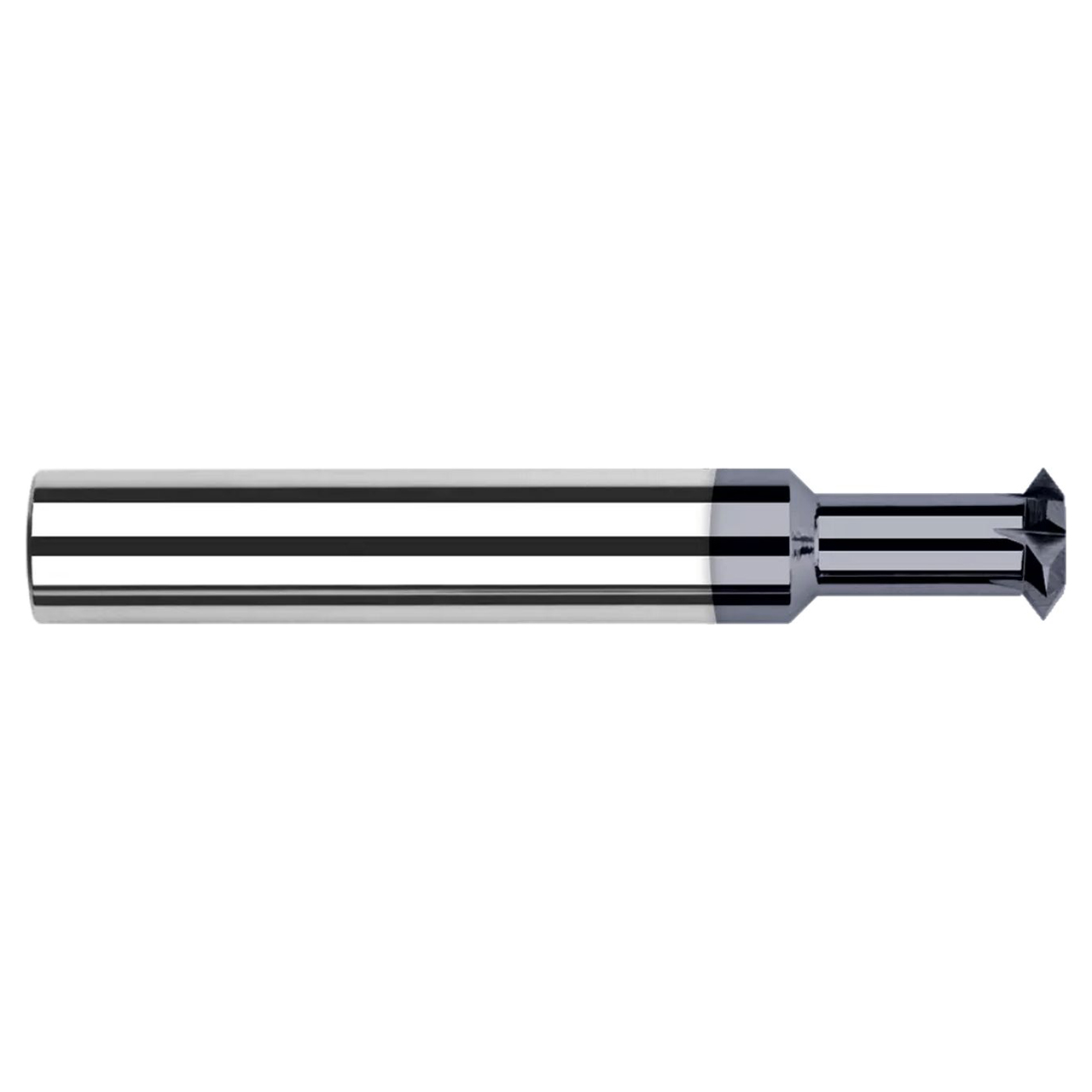

Harvey Tool 71604 | 0.0310" (1/32) Diameter x 0.0150" (1/64) Width x 0.1250" (1/8) Shank x 90 Degree Uncoated Carbide Double Angle Cutter

$49.20
SKU:
25211194
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number71604
Cutter Diameter (Inch)0.0310" (1/32)
Neck Diameter (Inch)0.0160" (.4 mm)
Cutter Width (Inch)0.0150" (1/64)
Neck Length (Inch)0.1250" (1/8)
Overall Length (Inch)1.5000" (1-1/2)
Angle per Side45
Included Angle90
Flutes2
TypeI
Shank Diameter (Inch)0.1250" (1/8)
CoatingUncoated

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
