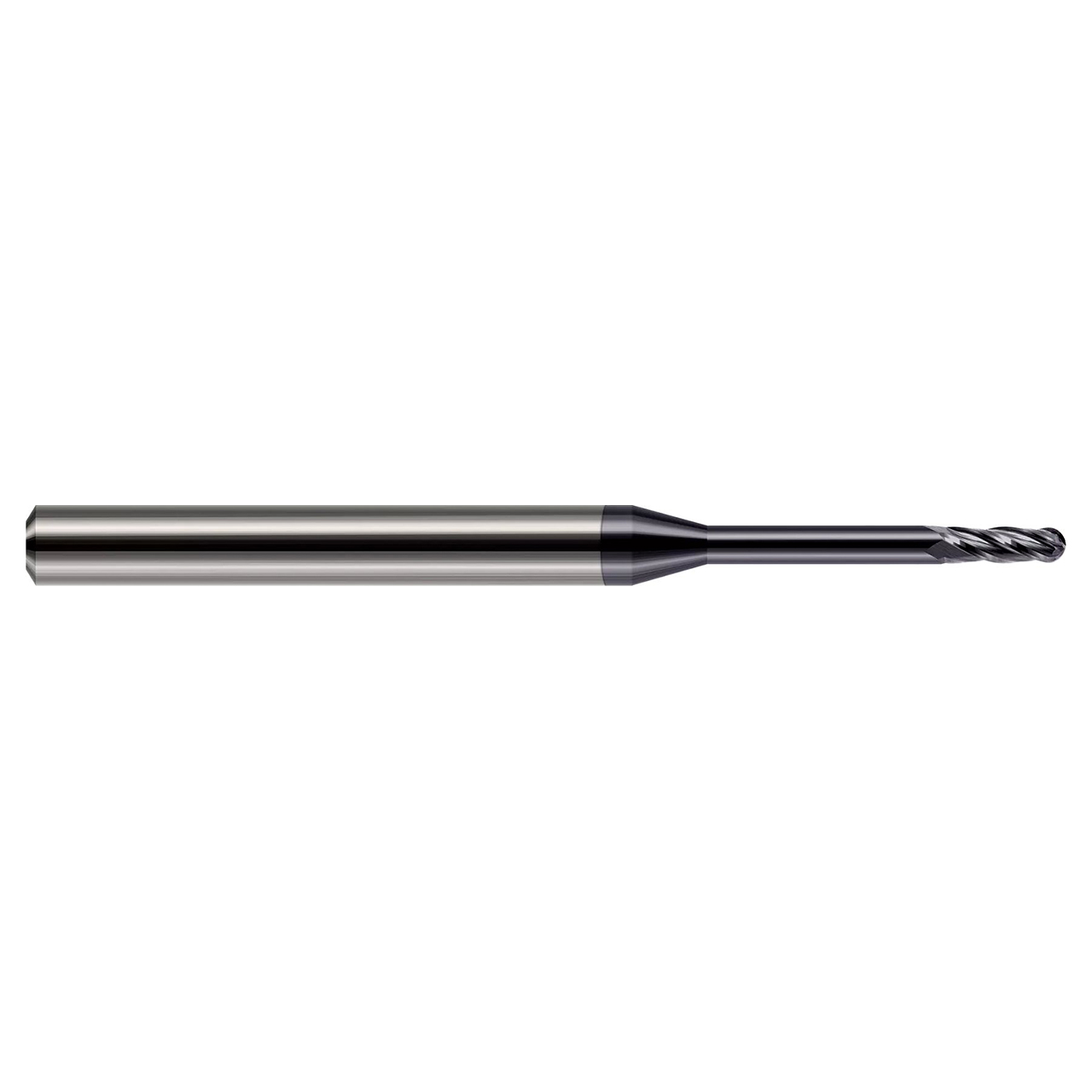

The reduced neck diameter featured in this line of Harvey Tool miniature end mills - ball - long reach, standard flute product helps to avoid heeling.
Features- Length of cut = 3 x diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 734778-C3 |
| Cutter Diameter (Inch) | 0.0780" (5/64) |
| Neck Diameter (Inch) | 0.0765" |
| Length of Cut (Inch) | 0.2340" (15/64) |
| Overall Reach (Inch) | 0.4750" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Number of Flutes | 4 |
| LOC Multiple | (3x) |
| Reach Multiple | (6x) |
| Coating | C3 |
| Profile | Ball |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/64"
Cutter Diameter (Decimal Inch):
0.0780"
Neck Diameter (Decimal Inch):
0.0765"
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.2340"
Overall Reach (Decimal Inch):
0.4750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C3
interval quantity:
1
