Product Specifications
| Manufacturer Part Number | 738612-C3 |
| Cutter Diameter (Decimal Inch) | 0.187" |
| Cutter Diameter (Inch) | 3/16" |
| Neck Diameter (Decimal Inch) | 0.082" |
| Length of Cut (Decimal Inch) | 0.174" |
| Neck Length (Decimal Inch) | 0.281" |
| Neck Length (Inch) | 9/32" |
| Overall Reach (Decimal Inch) | 0.455" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Radius (Decimal Inch) | 0.093" |
| Radius (Inch) | 3/32" |
| Wrap Angle (Degree) | 300 Degree |
| Number of Flute | 4 |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Metric | No |
| Coating | C3 |

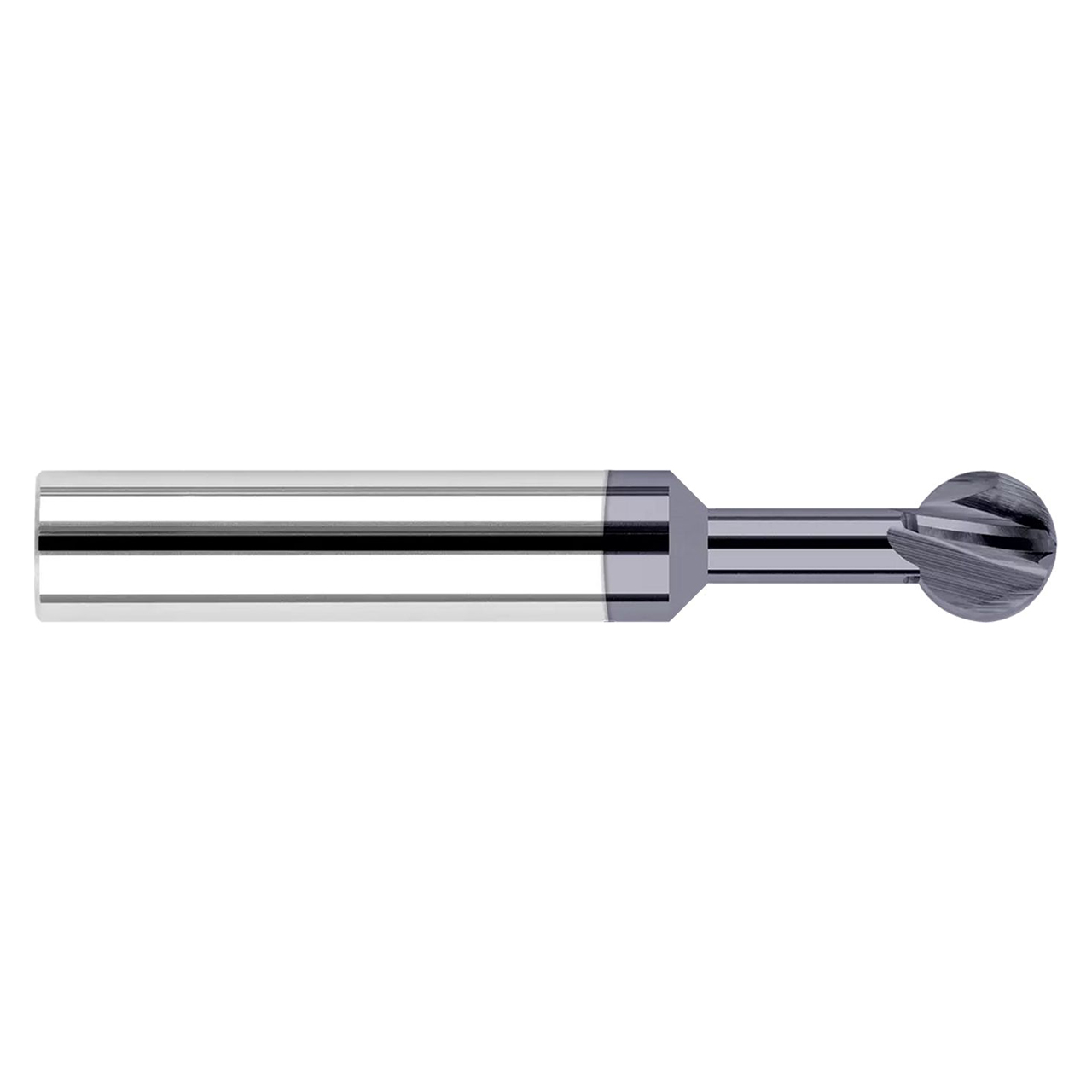

| Product Type | Undercutting End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Wrap Angle:
300 Degree
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1870"
Cutter Diameter (mm):
4.75mm
Length of Cut (Inch):
11/64"
Length of Cut (Decimal Inch):
0.1740"
Length of Cut (mm):
4.42mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.75mm
Neck Diameter (Inch):
5/64"
Neck Diameter (Decimal Inch):
0.0820"
Neck Diameter (mm):
2.08mm
Neck Length (Inch):
9/32"
Neck Length (Decimal Inch):
0.2810"
Neck Length (mm):
7.14mm
Number of Flutes:
4
Finish/Coating:
C3
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm";Interval quantity=1"
