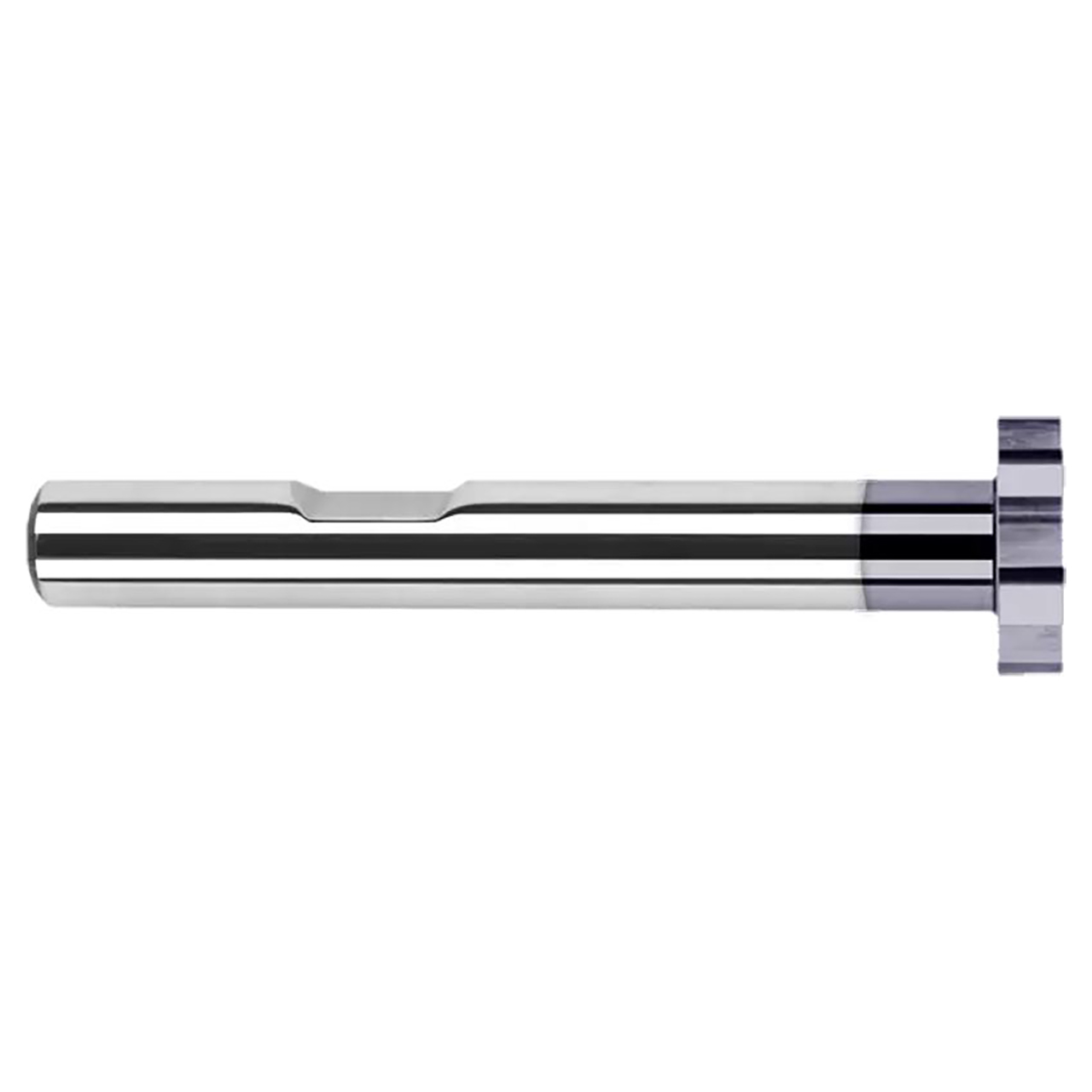

Keyseat Cutter offering, which feature tools with a solid carbide head brazed onto a steel shank, are dished for clearance. Each tool in this offering features a Weldon flat for added tool holding security during slotting operations.
- Solid Carbide Head Brazed onto a Steel Shank
- Both Sides of Cutter are Dished for Clearance
- CNC ground in the USA
Product Specifications
| Tool Number | 741770 |
| Cutter Diameter (Inch) | 1.1250" (1-1/8) |
| Cutter Width (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Radial Depth of Cut (Inch) | 0.1770" |
| Flutes | 14 |
| Type | I |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Shank Length (Inch) | 3.2500" (3-1/4) |
| Coating | Uncoated |
