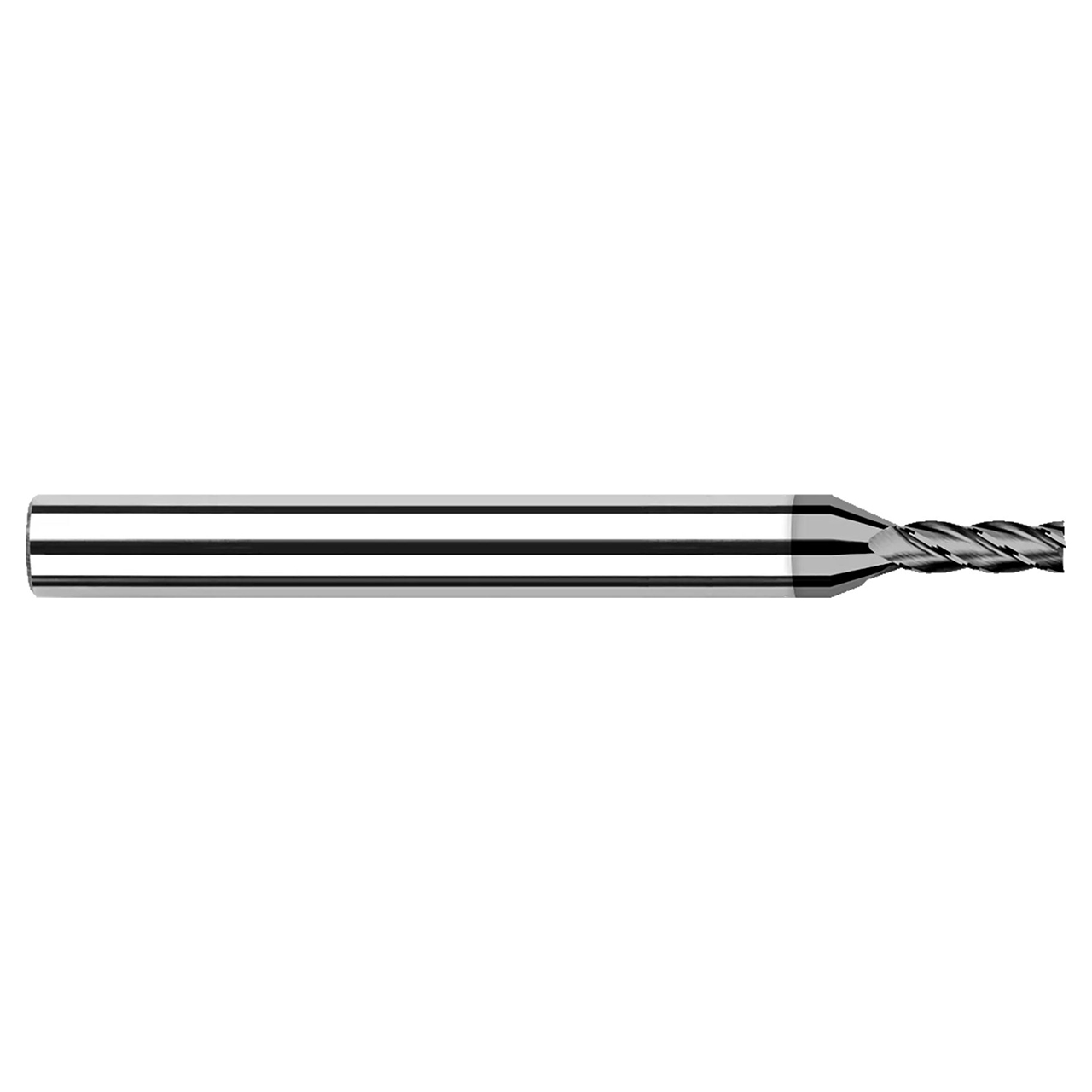

Harvey Tool 741932 | 0.5000" (1/2) Diameter 0.5000" (1/2) Shank x 1.5000" (1-1/2) LOC x 3.0000" (3) OAL 4 Flutes CVD Diamond (4 µm) Square End Mill

$302.40
Brand:
Harvey Tool
Shank Diameter (Inch):
1/2"
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Number of Flutes:
4
Finish/Coating:
C9
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
SKU:
25232332
UPC:
Weight:
0.30 LBS
Shipping:
Free Shipping

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Square features 4 flutes and true crystalline CVD diamond on solid carbide substrate.

  • Ideal for machining graphite and composites, green carbide, and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • h6 shank tolerance for high precision tool holders
  • Maximum abrasion resistance increases tool life
  • CNC ground in the USA
  • Center cutting
  • 4 flutes

Product Specifications
Tool Number741932
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)1.5000" (1-1/2)
Overall Length (Inch)3.0000" (3)
Flutes4
LOC Multiple3x
Shank Diameter (Inch)0.5000" (1/2)
CoatingC9

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Shank Diameter (Inch):
1/2"
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Number of Flutes:
4
Finish/Coating:
C9
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
